01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts

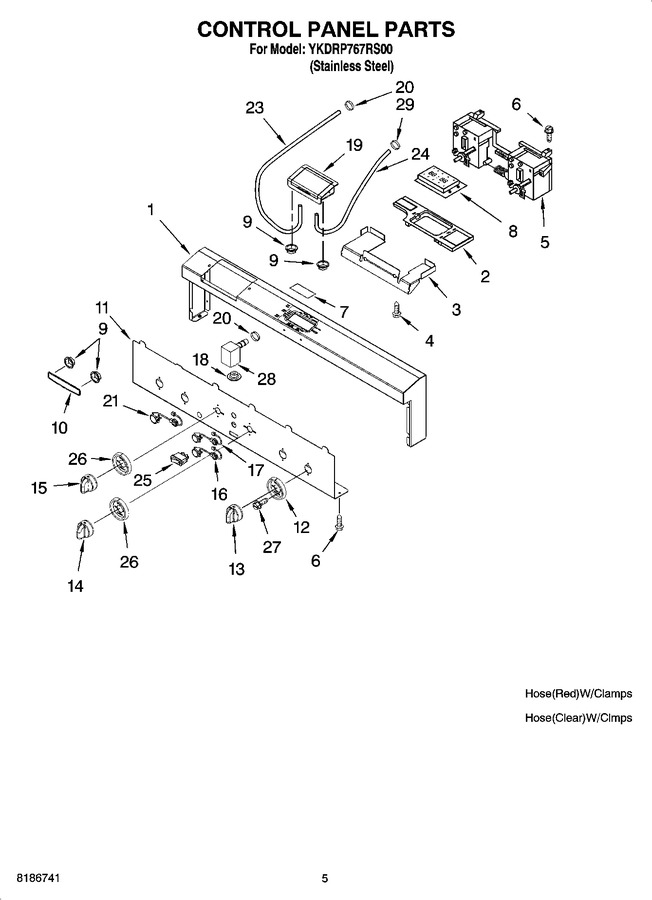

04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9758958		Panel, Control (inc. Nuts, Clamps)		Appelez-nous	-
2	4453000		Bracket, Display		Appelez-nous	-
3	9758961		Bracket, Display Mounting		Appelez-nous	-
4	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
5	9761103		Control, Zodiac				$ 230.81
6	WPW10132940		Screw, 6-19 X 1   (Replaces: 3196184)				$ 8.50
7	4455806		Glass, Control Panel		Appelez-nous	-
8	9758960		Module, Display		Appelez-nous	-
9	WP2004333		Palnut   (Replaces: 2004333)				$ 9.63
10	2005292		Nameplate				$ 52.20
11	9758968		Face, Control Panel		Appelez-nous	-
12	4455192		Bezel, Knob		Appelez-nous	-
13	WPW10078400		Knob, Control   (Replaces: 4454970)				$ 6.26
14	4455115		Knob, Temp/time				$ 21.22
15	9758966		Knob, Selector				$ 52.63
16	4457278		Jumper		Appelez-nous	-
16	4457218		Switch, Cancel				$ 59.40
17	WP4452997		Switch, Enter   (Replaces: 4452997)				$ 127.36
18	9758974		Button, Drain		Appelez-nous	-
19	9761600		Water, Inlet (inc. Nuts, Clamps)		Appelez-nous	-
20	WP489503		Clamp   (Replaces: 9761146)			Immediately	$ 9.68
21	4457218		Switch, Cancel (drain Pump)				$ 59.40
23	9761149		Hose (red) W/clamps (inlet To Resrv`r)		Appelez-nous	-
24	8186362		Hose (clear) W/clmps (inlet To Valve)   (Replaces: 9761151)		Appelez-nous	-
25	WP4452842		Switch, Oven Light   (Replaces: 4452842)				$ 89.53
26	4457152		Bezel, Temp Knob		Appelez-nous	-
27	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
28	9762136		Fitting, Drain (includes Clamp)		Appelez-nous	-
29	WP489503		Clamp   (Replaces: 9762671)			Immediately	$ 9.68

    View Diagram in Separate Window       Print Part List
