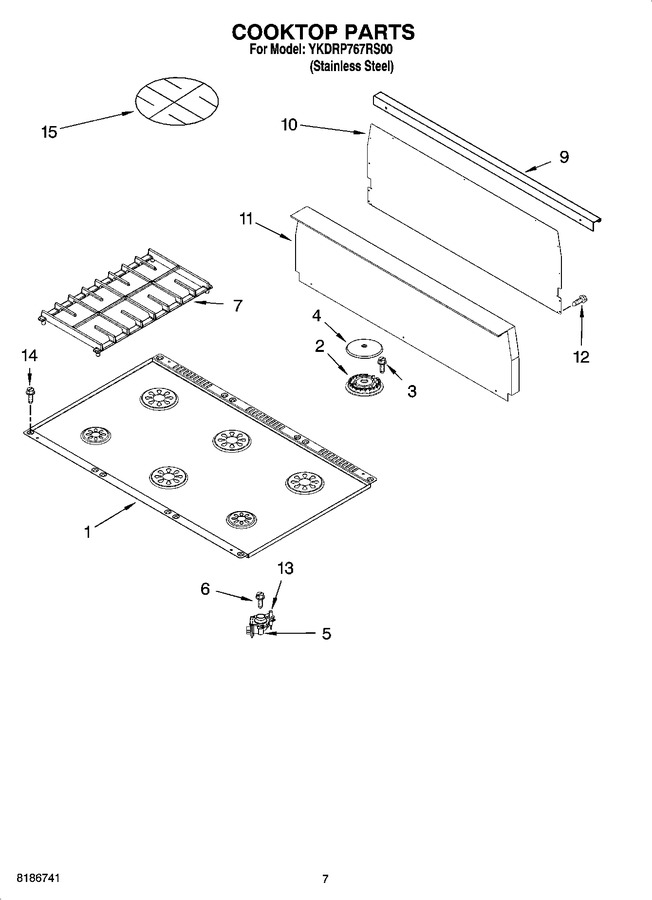

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9760871		Cooktop		Appelez-nous	-
2	4455849		Burner Head (turbi (4))				$ 47.68
2	4455979		Burner Head (auxi (6k) (2))				$ 28.52
3	WP3368921		Screw, 7-18 X 3/4   (Replaces: 3368921)			Immediately	$ 6.42
4	WP8284669		Cap, Burner (6k (2))   (Replaces: 8284669)			Immediately	$ 64.79
4	4455243		Cap, Burner (14k (4))				$ 41.37
5	WPW10155786		Orifice Holder (6) (incl.orifice & Ignitor)   (Replaces: 4456622)			Immediately	$ 102.16
6	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
7	4457331		Grate, Burner (3)		Appelez-nous	-
9	4454962		Trim, Island		Appelez-nous	-
10	9762603		Support, Backsplash		Appelez-nous	-
11	9762605		Trim, Backsplash		Appelez-nous	-
12	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400837)				$ 6.47
13	WP9782116		Ignitor   (Replaces: 9782116)			Immediately	$ 49.45
14	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
15	4455109		Plate, Simmer				$ 52.31
