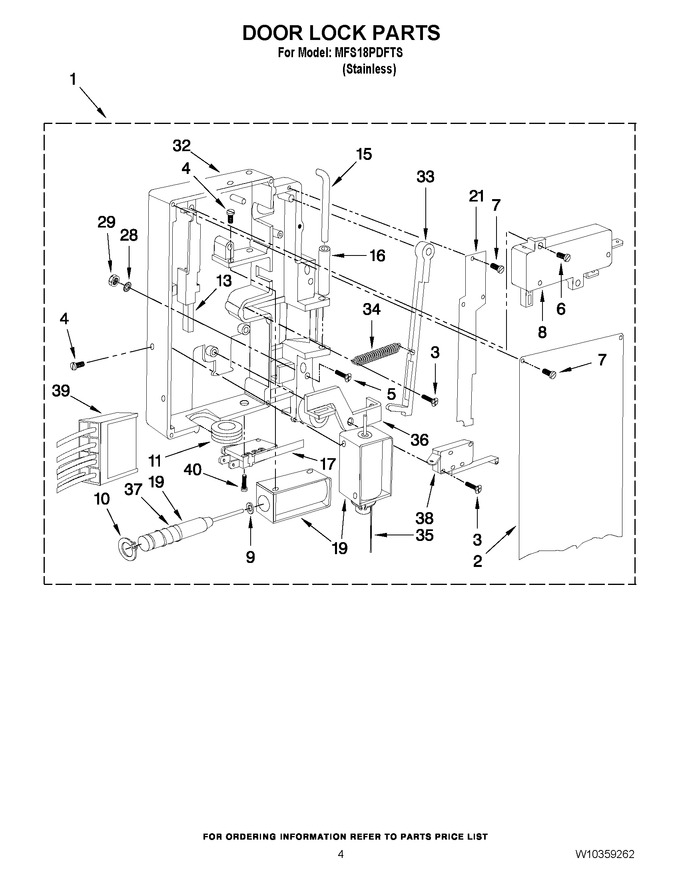

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y23002897 | Door Lock Complete |
|
- | |||||
| 2 | W10357120 | Door Lock Cover Plate |
|
- | |||||
| 3 | 23001131 | Bolt M3x14 |
|
- | |||||
| 4 | 23002869 | Bolt M3x6 |
|
- | |||||
| 5 | 23001133 | Bolt M5x25 |
|
- | |||||
| 6 | 23003114 | Bolt M4x8 |
|
- | |||||
| 7 | 23002869 | Bolt M3x6 |
|
- | |||||
| 8 | 23001135 | Bimetal Switch Assembly |
|
- | |||||
| 9 | 23001136 | Washer |
|
- | |||||
| 10 | 23001137 | Snap Ring |
|
- | |||||
| 11 | 23001138 | Rubber Grommet |
|
- | |||||
| 13 | 23001140 | Locking Bar |
|
- | |||||
| 15 | 23001142 | Latch Roller Pin |
|
- | |||||
| 16 | 23001143 | Latch Roller |
|
- | |||||
| 17 | 23001145 | Door Closed Switch |
|
- | |||||
| 19 | 23001146 | Solenoid |
|
- | |||||
| 21 | 23001149 | Leaf Spring |
|
- | |||||
| 28 | 23004485 | Lock Washer M5 |
|
- | |||||
| 29 | 23004486 | Nut M5 |
|
- | |||||
| 32 | Y23002898 | Door Lock Housing |
|
- | |||||
| 33 | 23002899 | Actuator Arm |
|
- | |||||
| 34 | 23001148 | Actuator Arm Spring |
|
- | |||||
| 35 | 23001152 | Emergency Opening Cord |
|
Immediately | $ 458.78 | ||||
| 36 | 23002902 | Emergency Opening Lever |
|
- | |||||
| 37 | 23002903 | Solenoid Spring |
|
- | |||||
| 38 | 23002337 | Door Locked Switch |
|
- | |||||
| 39 | 23002905 | Door Lock Wire Harness |
|
- | |||||
| 40 | 23001131 | Bolt M3x14 |
|
- | |||||
| NI | 23003863 | Microswitch Insulating Washer |
|
- |
