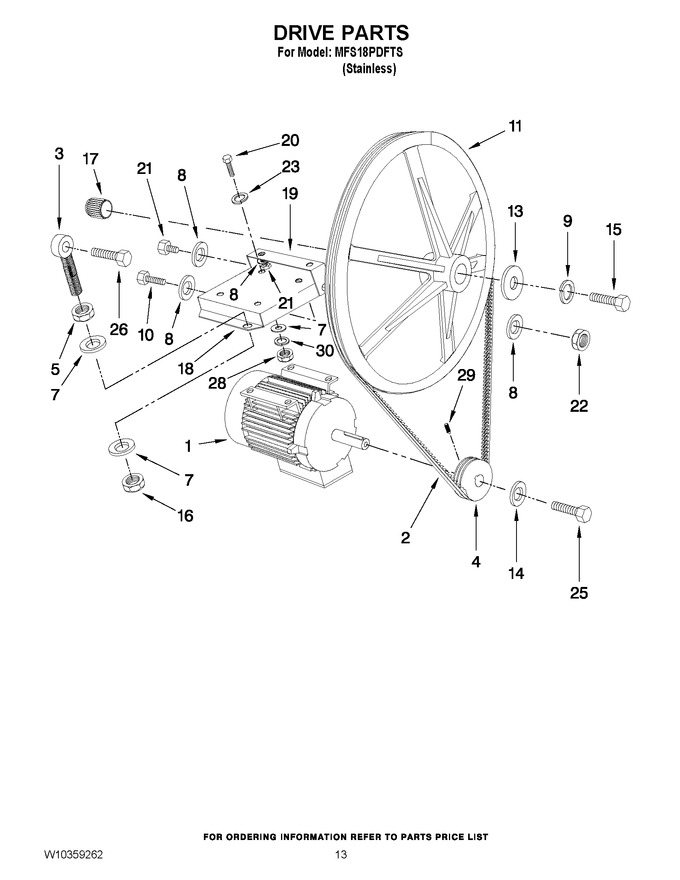

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004079		Drive Motor		Appelez-nous	-
2	23003587		V-belt				$ 40.93
3	W10286331		Eye Bolt M16x90		Appelez-nous	-
4	W10357142		Motor Pulley		Appelez-nous	-
5	23004281		Nut M16		Appelez-nous	-
7	23003403		Washer M17x40x3		Appelez-nous	-
8	23004023		Washer M10		Appelez-nous	-
9	23002658		Washer M12		Appelez-nous	-
10	23003285		Bolt (m10x50)		Appelez-nous	-
11	23001415		Drum Pulley		Appelez-nous	-
13	23004146		Washer M37x13x3		Appelez-nous	-
14	23003788		Washer M10		Appelez-nous	-
15	23001418		Bolt (m12 X 25)		Appelez-nous	-
16	23004281		Nut M16		Appelez-nous	-
17	23001410		Tolerance Ring		Appelez-nous	-
18	W10357143		Motor Mtg Plate		Appelez-nous	-
19	W10357144		Motor Mounting Bracket		Appelez-nous	-
20	23001305		Bolt M8x25		Appelez-nous	-
21	23001905		Bolt M10x25		Appelez-nous	-
22	DC60-50145A		Nut M10   (Replaces: 23001661)				$ 2.39
23	23001203		Washer M8.4x24x2		Appelez-nous	-
25	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
26	23004040		Bolt M16x50		Appelez-nous	-
28	23003766		Nut M8		Appelez-nous	-
29	23004509		Screw M8x10		Appelez-nous	-
30	23002358		Washer M8		Appelez-nous	-
NI	23004498		Motor Harness		Appelez-nous	-
