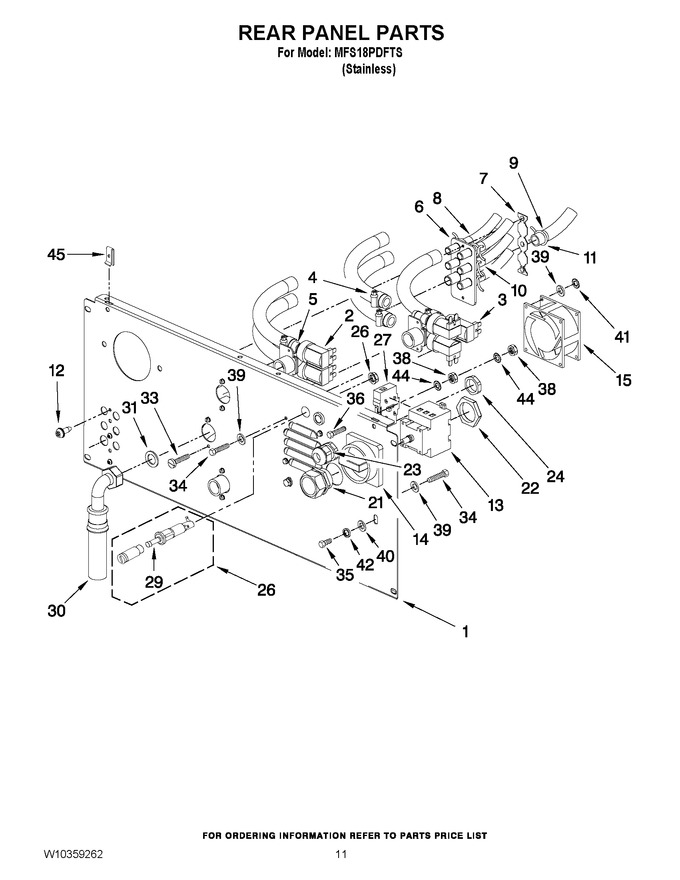

09 - Rear Panel Parts


10 - Drive Parts


11 - Frame And Tub Support Parts


12 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004493		Upper Back Panel		Appelez-nous	-
2	23001455		Dual Valve		Appelez-nous	-
3	23001533		Triple Valve				$ 99.79
4	WP596669		Hose Clamp   (Replaces: 596669)			Immediately	$ 7.56
5	23001507		Inlet Hose		Appelez-nous	-
6	W10223169		Chemical Injection Manifold		Appelez-nous	-
7	14227179		Manifold Mtg Plate		Appelez-nous	-
8	23002193		Small Chemical Hose D10/14		Appelez-nous	-
9	W10223170		Large Chemical Hose D14/18		Appelez-nous	-
10	WP596669		Hose Clamp   (Replaces: W10286344)			Immediately	$ 7.56
11	WP596669		Hose Clamp   (Replaces: W10286346)			Immediately	$ 7.56
12	WPW10131119		Screw M4x13   (Replaces: 23003810)				$ 6.26
13	23003500		Main Switch 25a		Appelez-nous	-
14	23003497		Main Switch Knob		Appelez-nous	-
15	23002165		Cooling Fan				$ 297.78
21	23004494		Large Strain Relief		Appelez-nous	-
22	23004495		Large Strain Relief Nut		Appelez-nous	-
23	23002196		Med. Strain Relief		Appelez-nous	-
24	23002197		Med. Strain Relief Nut		Appelez-nous	-
26	23002210		Fuse Holder		Appelez-nous	-
27	23003504		Main Switch, Contact		Appelez-nous	-
29	23002919		Fuse 0.5a		Appelez-nous	-
30	23003496		Non-north, American Hose		Appelez-nous	-
30	23001523		North American, Hose		Appelez-nous	-
31	23002921		Hose Washer		Appelez-nous	-
33	23002721		Bolt M4x12		Appelez-nous	-
34	23004095		Bolt M4x16		Appelez-nous	-
35	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
36	23002806		Bolt M6x25		Appelez-nous	-
38	23001312		Nut M6		Appelez-nous	-
39	23002438		Washer M4.3		Appelez-nous	-
40	23002756		Washer M6.4		Appelez-nous	-
41	23002400		Washer M4		Appelez-nous	-
42	20007283		Washer M6   (Replaces: 23002440)				$ 504.91
44	23001734		Lock Washer M6		Appelez-nous	-
45	23004481		Tinnerman Clip		Appelez-nous	-
NI	23003328		Fuse Label 1a/500v		Appelez-nous	-
NI	23001469		Hot Water Label				$ 1,212.53
NI	23001470		Cold Water Label				$ 938.83
NI	23001509		Water Valve Label		Appelez-nous	-
NI	23001465		Saftey Label		Appelez-nous	-
NI	W10357133		Spin Direction Label		Appelez-nous	-
NI	W10357135		Y Connector		Appelez-nous	-
