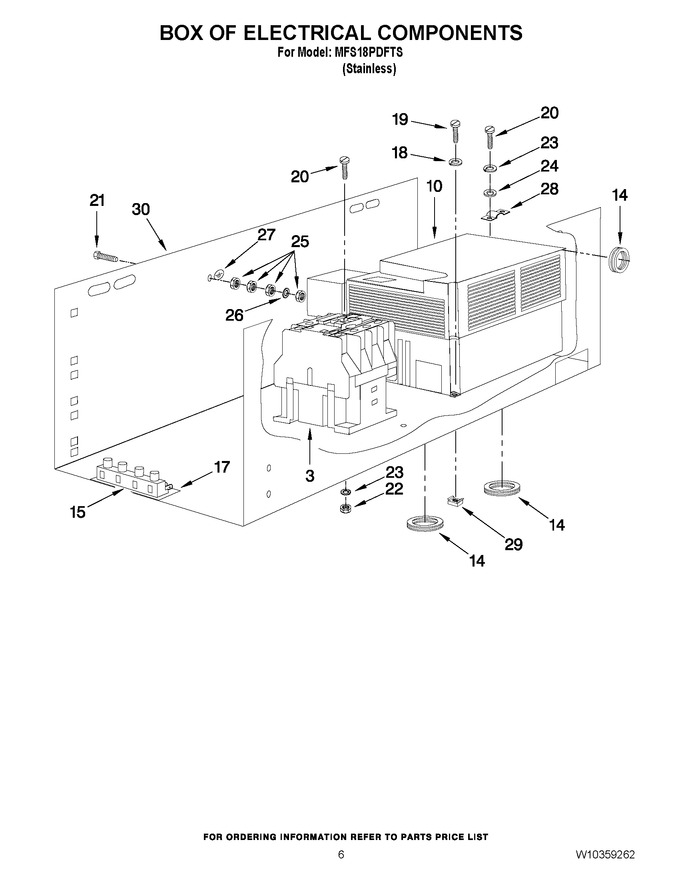

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 23003750 | Frequency Inverter Contactor |
|
- | |||||
| 10 | W10415734 | Frequency Inverter (after Series 22) |
|
- | |||||
| 10 | 23004078 | Frequency Inverter |
|
- | |||||
| 10 | W10357136 | Communication Cable |
|
- | |||||
| 14 | 23001117 | Rubber Grommet |
|
- | |||||
| 15 | 23001113 | Terminal Block |
|
- | |||||
| 17 | 23001115 | Terminal Block Insulation |
|
- | |||||
| 18 | 23001708 | Washer M5 |
|
- | |||||
| 19 | 23004497 | Bolt M5x16 |
|
- | |||||
| 20 | W10295997 | Bolt M4x16 (Replaces: 23001089) |
|
$ 6.27 | |||||
| 21 | 23002806 | Bolt M6x25 |
|
- | |||||
| 22 | 23001014 | Nut M4 |
|
- | |||||
| 23 | 23002865 | Washer M4 |
|
- | |||||
| 24 | 23002504 | Washer M4 |
|
- | |||||
| 25 | 23001312 | Nut M6 |
|
- | |||||
| 26 | 23001734 | Washer (m6) |
|
- | |||||
| 27 | 23002505 | Ground Label |
|
- | |||||
| 28 | 23004094 | U-clip |
|
- | |||||
| 29 | 23001448 | Nut M5 |
|
- | |||||
| 30 | 23004386 | Controls Mounting |
|
- | |||||
| NI | 23004163 | Door Lock Harness |
|
- | |||||
| NI | WPW10357137 | Main Harness (Replaces: W10357137) |
|
$ 517.20 |
