SELECT A DIAGRAM

01 - Cabinet And Coin Box Parts


02 - Door Parts


03 - Door Lock Parts


04 - Control Panel Parts


05 - Box Of Electrical Components

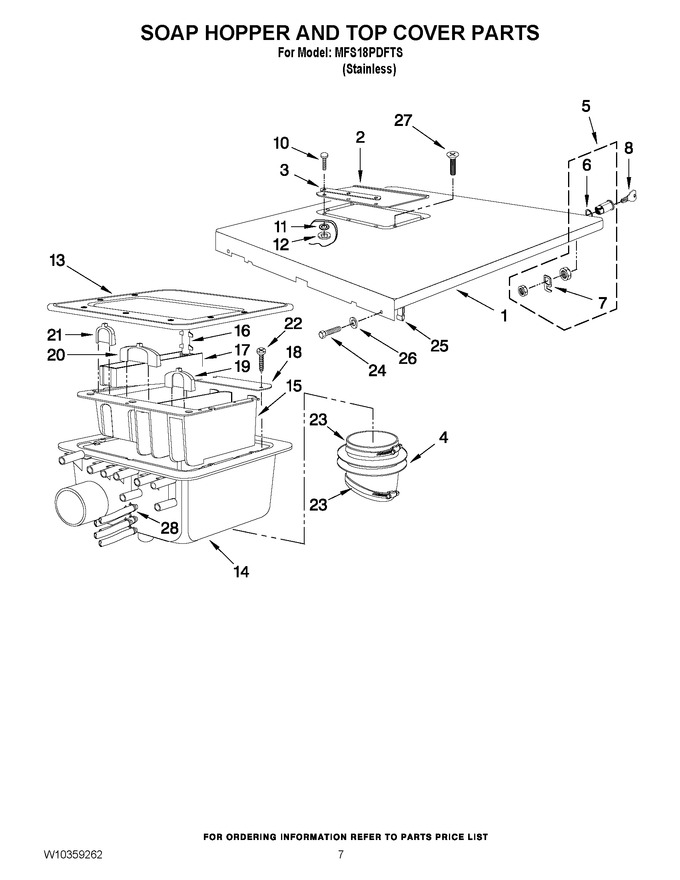

06 - Soap Hopper And Top Cover Parts


07 - Tub And Drum Parts


08 - Drain System Parts


09 - Rear Panel Parts


10 - Drive Parts


11 - Frame And Tub Support Parts


12 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10337907		Top Cover Complete		Appelez-nous	-
2	23002111		Dispenser Cover   (Replaces: 23001003)			Immediately	$ 221.87
3	N/P		Dispenser Cover Retainer		Appelez-nous	-
4	WP23004115		Hopper To Tub Hose   (Replaces: 23004187)				$ 130.20
5	23001006		Top Cover Lock		Appelez-nous	-
6	23001007		Top Lock Cam		Appelez-nous	-
7	23001009		Top Lock Hook		Appelez-nous	-
8	23002673		Lock Key				$ 1,792.62
10	23001012		Bolt M4x12				$ 13.48
11	23001013		Lockwasher (m4)		Appelez-nous	-
12	23002652		Nut M4		Appelez-nous	-
13	23001015		Soap Hopper Gasket		Appelez-nous	-
14	23001016		External Soap Hopper		Appelez-nous	-
15	23001017		Soap Hopper Insert		Appelez-nous	-
16	23001018		Syphon Hose		Appelez-nous	-
17	23001019		Fabric Softner Insert		Appelez-nous	-
18	23001020		Insert Retainer		Appelez-nous	-
19	23001021		Prewash Diverter		Appelez-nous	-
20	23001022		Mainwash Diverter		Appelez-nous	-
21	23001023		Fabric Softner Diverter		Appelez-nous	-
22	23003782		Screw St3.5x25				$ 3.66
23	WP696392		Hose Clamp   (Replaces: 23001025)				$ 7.31
24	23004488		Screw St4 8x25		Appelez-nous	-
25	23004481		Speednut		Appelez-nous	-
26	23002756		Washer M6		Appelez-nous	-
27	23003484		Bolt M5x16				$ 5.27
28	W10357122		Hose Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
