Diagram for 01 - Cabinet And Coin Box Parts
01 - Cabinet And Coin Box Parts

Diagram for 02 - Door Parts
02 - Door Parts

Diagram for 03 - Door Lock Parts
03 - Door Lock Parts

Diagram for 04 - Control Panel Parts
04 - Control Panel Parts

Diagram for 05 - Box Of Electrical Components
05 - Box Of Electrical Components

Diagram for 06 - Soap Hopper And Top Cover Parts
06 - Soap Hopper And Top Cover Parts

Diagram for 07 - Tub And Drum Parts
07 - Tub And Drum Parts

Diagram for 08 - Drain System Parts
08 - Drain System Parts

Diagram for 09 - Rear Panel Parts
09 - Rear Panel Parts

Diagram for 10 - Drive Parts
10 - Drive Parts

Diagram for 11 - Frame And Tub Support Parts
11 - Frame And Tub Support Parts

Diagram for 12 - Trunnion Parts
12 - Trunnion Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 12002779 Seal Ring Appelez-nous -
4 W10357145 Bearing Housing Appelez-nous -
5 23004511 Seal Plate Appelez-nous -
9 23004039 Inner Snap Ring Appelez-nous -
10 23004512 Outer Snap Ring Appelez-nous -
11 23003615 Front Bearing Appelez-nous -
12 23004032 Rear Bearing Appelez-nous -
13 12002779 Water Seal Appelez-nous -
16 23002281 Washer M6.4x12x1.6 Appelez-nous -
23 23002462 Bolt M6x20 Special Order $ 5.14


    View Diagram in Separate Window     Print Icon   Print Part List

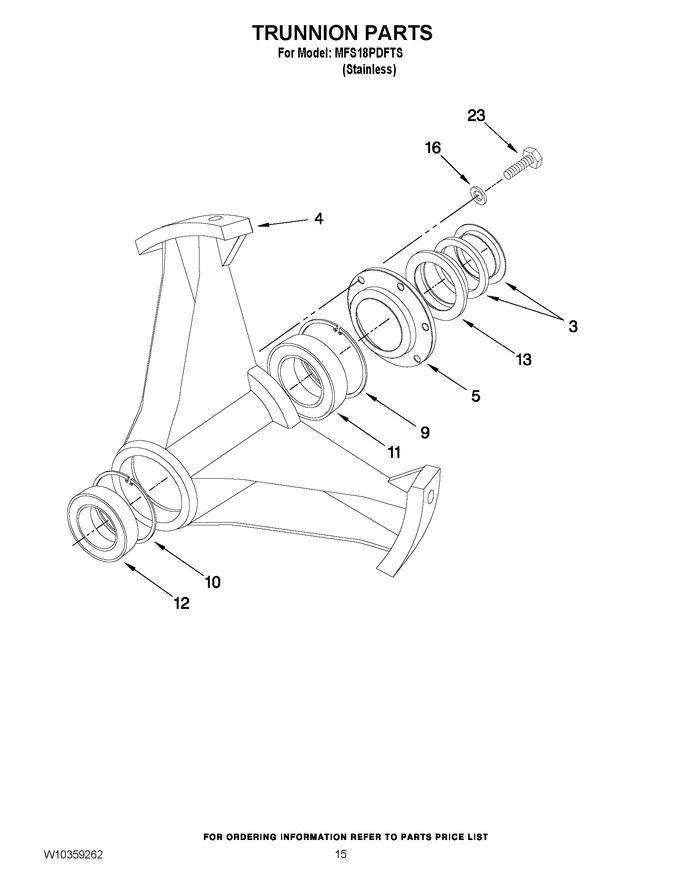

Diagram for MFS18PDFTS
