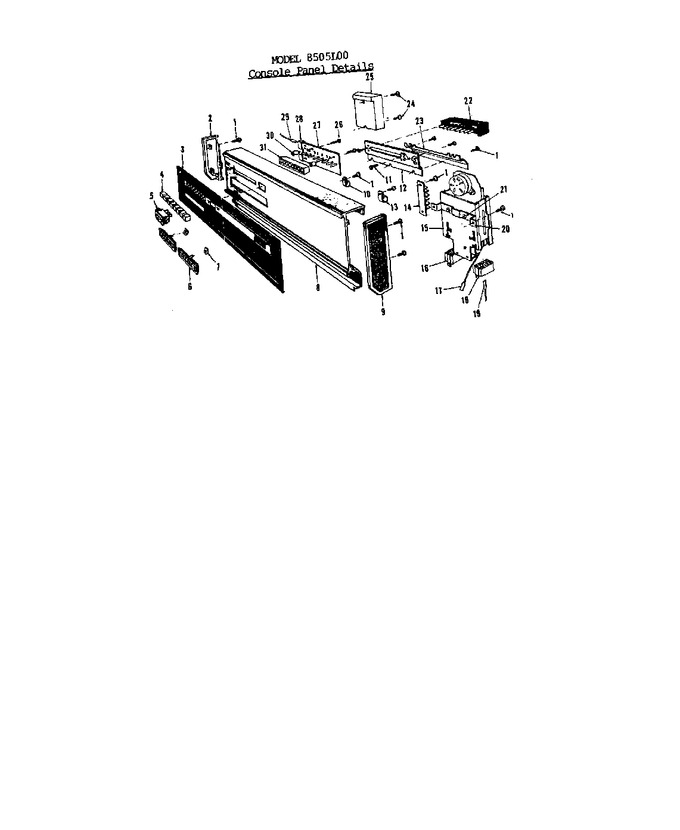

02 - Console Panel


03 - Detergent Cup


04 - Rack


05 - Frame


06 - Door


07 - Motor, Heater And Spray Arm


08 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw 8x7/16 Lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
2	806407		End Cap - L.h. (chrome)		Appelez-nous	-
3	808856		Console Overlay		Appelez-nous	-
4	807273		Pushbutton		Appelez-nous	-
5	807737		Rocker Switch		Appelez-nous	-
6	808477		Vent Grille		Appelez-nous	-
7	808475		Speednut		Appelez-nous	-
8	808857		Console Panel (includes Service Nos. 808447-vent Grille (2) & 808475-speednut (2)		Appelez-nous	-
9	806406		End Cap - L.h. (chrome)		Appelez-nous	-
10	808442		Clamp		Appelez-nous	-
11	807141		Screw 6-30 X 3/8 Lg. Pan Hd Cad. Pl.		Appelez-nous	-
12	808164		Switch Mounting Bracket		Appelez-nous	-
13	808495		Clamp		Appelez-nous	-
14	808858		Terminal Board Assembly		Appelez-nous	-
15	808833		Timer		Appelez-nous	-
16	808231		Timer Terminal Housing (black)		Appelez-nous	-
17	808334		Terminal - Timer		Appelez-nous	-
18	808232		Timer Housing (white)		Appelez-nous	-
19	808333		Housing Terminal		Appelez-nous	-
20	808860		Timer Bracket		Appelez-nous	-
21	808861		Screw 10-32 X 7/32 Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
22	808862		Switch		Appelez-nous	-
23	808398		Shield - Vent Slot		Appelez-nous	-
24	806894		Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
25	807425		Splash Pan		Appelez-nous	-
26	805126		Screw 8x7/8 Lg. C.r. Round Hd. Cad. Pl.		Appelez-nous	-
27	808863		Circuit Board Assembly		Appelez-nous	-
28	808864		Circuit Board Connector		Appelez-nous	-
29	COMM PART		Circuit Board Terminal   (Replaces: 808000)		Appelez-nous	-
30	805323		Spacer		Appelez-nous	-
31	807140		Light Divider		Appelez-nous	-
