Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 808684 Lower Rack Assembly (includes Service No.807008-wheel Bracket Cap (4)) Appelez-nous -
2 807512 Silverware Basket Appelez-nous -
3 807902 Upper Rack Assembly Appelez-nous -
4 807957 Wheel Assembly-complete Appelez-nous -
5 807853 End Cap Rack Slide Appelez-nous -
6 807854 Rack Slide Appelez-nous -
7 807008 Wheel Bracket Cap Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

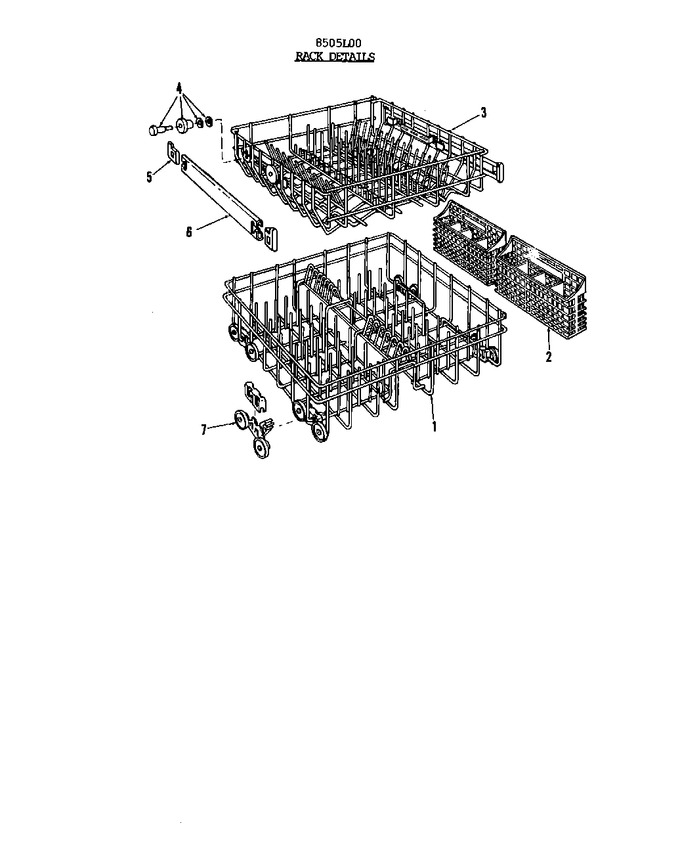

Diagram for 8505L00
