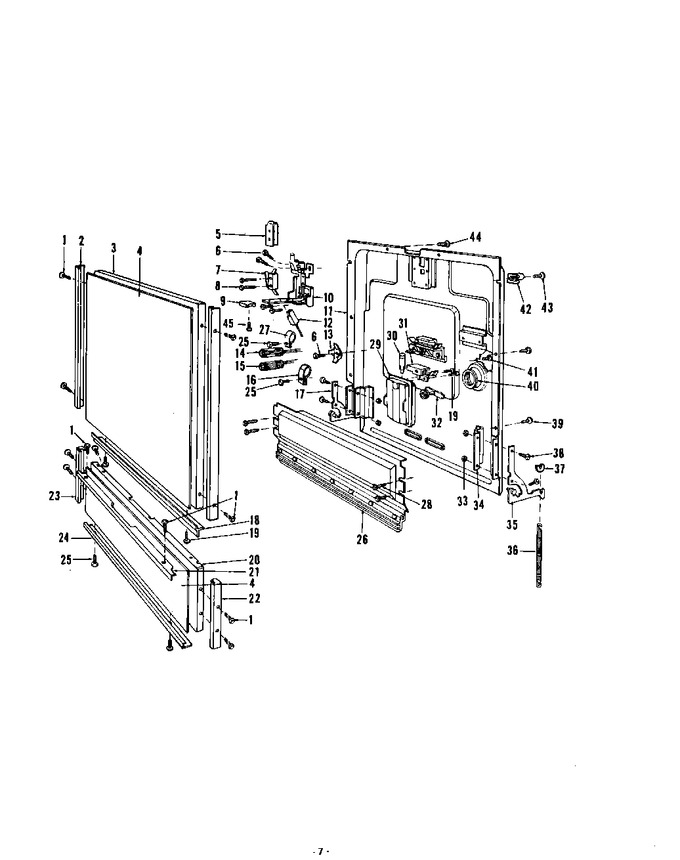

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74004005		Screw 6x1/4 Lg. C.r. Truss Hd Chrome Pl.   (Replaces: 807293)				$ 6.95
2	808026		Door Side Trim		Appelez-nous	-
3	807262		Door Panel (white)		Appelez-nous	-
4	808404		Door & Access Insert Panels (almond/black)		Appelez-nous	-
5	807450		Cover - Switch		Appelez-nous	-
6	806830		Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl.		Appelez-nous	-
7	807043		Switch		Appelez-nous	-
8	808618		Screw 6-32x1``lg. Hex Hd. Cad. Pl.		Appelez-nous	-
9	806398		Latch Knob		Appelez-nous	-
10	807016		Latch Assembly		Appelez-nous	-
11	COMM PART		Porcelain Weld Assembly   (Replaces: 807194)		Appelez-nous	-
12	806846		Terminal - Insulator		Appelez-nous	-
13	807213		Grounding Terminal		Appelez-nous	-
14	808865		Thermostat (180 Degrees)		Appelez-nous	-
15	808646		Thermostat (134 Degrees)		Appelez-nous	-
16	808442		Clamp		Appelez-nous	-
17	805682		Arm Assembly - Counterbalance L.h.		Appelez-nous	-
18	COMM PART		Door Panel Trim-bottom   (Replaces: 807347)		Appelez-nous	-
19	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
21	807257		Access Panel		Appelez-nous	-
22	808028		Access Panel Trim-r.h.		Appelez-nous	-
23	808029		Access Panel Trim - L.h.		Appelez-nous	-
24	808027		Access Panel		Appelez-nous	-
25	W11233072		Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
26	5300809243		Vent Plate Assembly   (Replaces: 808369)				$ 20.25
27	808495		Clamp		Appelez-nous	-
28	806810		Screw 8x3/8 Lg. C.r. Round Hd. St. St.		Appelez-nous	-
29	806753		Body Assembly		Appelez-nous	-
30	806757		Plunger		Appelez-nous	-
31	806756		Bracket Assembly		Appelez-nous	-
32	807673		Fill Plug		Appelez-nous	-
33	M0282009		Nut   (Replaces: 808470)				$ 12.06
34	COMM PART		Counterbalance Arm Mounting Bracket   (Replaces: 806717)		Appelez-nous	-
35	805681		Counterbalance Arm Assembly - R.h.		Appelez-nous	-
36	805683		Door Spring (includes Service No. 805884-spring Pad (1))		Appelez-nous	-
37	805884		Spring Rod		Appelez-nous	-
38	803311		Screw 10-24x5/8 Lg. C.r. Truss Hd. Chr. Pl.		Appelez-nous	-
39	806967		Screw 8x1/2 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
40	805631		Grommet - Dispenser		Appelez-nous	-
41	806863		Screw 10x3/8 Lg. Truss Washer Hd. St. St.		Appelez-nous	-
42	807449		Guide - Door		Appelez-nous	-
43	808749		Screw 8x5/8 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
44	806894		Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
45	808715		Screw 8-32x7/32 Lg. C.r. Truss Hd. Zinc Pl.		Appelez-nous	-
