SELECT A DIAGRAM

02 - Console Panel


03 - Detergent Cup


04 - Rack


05 - Frame


06 - Door


07 - Motor, Heater And Spray Arm

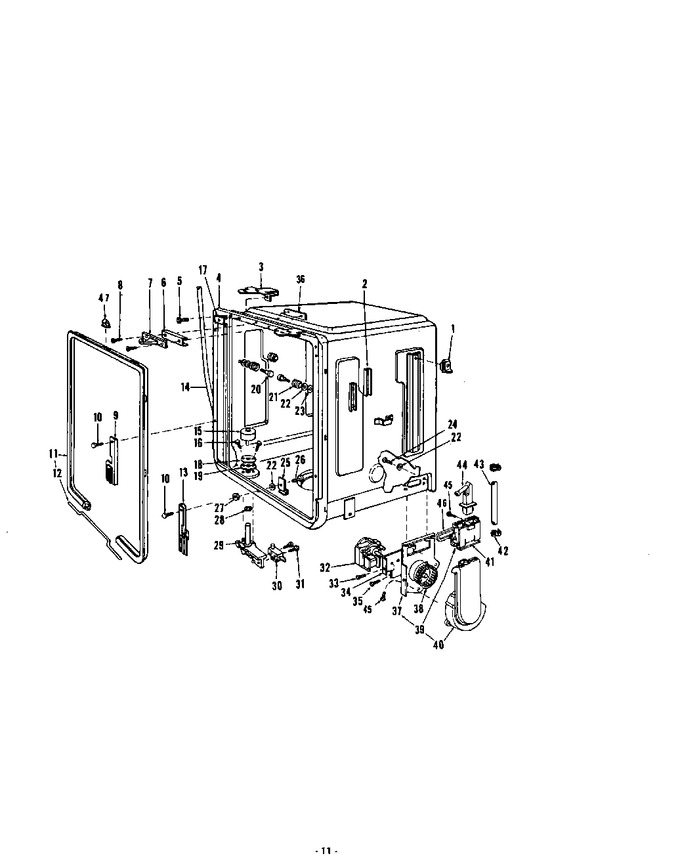

08 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806291		Cage Nut		Appelez-nous	-
2	807038		Tapping Plate		Appelez-nous	-
3	808289		Attach Clip		Appelez-nous	-
4	808725		Tub & Gasket Assembly		Appelez-nous	-
5	806976		Screw 8 X 7/16 Lg. C.r. Truss Hd. S.s.		Appelez-nous	-
6	807073		Shim		Appelez-nous	-
7	807015		Door Strike		Appelez-nous	-
8	806890		Screw 10 X 3/4 Lg. C.r. Flat Hd. Chrome Pl.		Appelez-nous	-
9	807470		Counterbalance Arm Guide L.h.		Appelez-nous	-
10	806539		Screw 10-24 X 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.		Appelez-nous	-
11	5303912631		Gasket & Wire Assembly (includes Service No. 808344, Gasket Junction Wire)   (Replaces: 808345)		Appelez-nous	-
12	808344		Gasket Junction Wire		Appelez-nous	-
13	807471		Counterbalance Arm Guide R.h.		Appelez-nous	-
14	806089		Drain Hose		Appelez-nous	-
15	804630		Float		Appelez-nous	-
16	807268		Screw 10xl Lg. Hex Washer Hd. St. St.		Appelez-nous	-
17	808366		Clip Shim		Appelez-nous	-
18	808064		Plate - Float Tube		Appelez-nous	-
19	808063		Gasket - Float Tube		Appelez-nous	-
20	808564		Screws & Washers Service Kit (includes Service Nos. 805776-sealing Washer (4) And 803367 Washer (4))		Appelez-nous	-
21	807180		Tub Roller		Appelez-nous	-
22	803367		Washer		Appelez-nous	-
23	805776		Sealing Washer		Appelez-nous	-
24	806901		Screw 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St.		Appelez-nous	-
25	COMM PART		Dam Clip   (Replaces: 808115)		Appelez-nous	-
26	WP250830		Screw 8-32 X 1/2 Lg. C.r. Truss Hd. St. St.   (Replaces: 803319)				$ 7.16
27	803346		Nut		Appelez-nous	-
28	807759		``o`` Ring		Appelez-nous	-
29	807677		Float Switch Kit (includes Service Nos. 808064 Float Tube Plate And 808063-float Tube Gasket)		Appelez-nous	-
30	807680		Float Switch		Appelez-nous	-
31	804594		Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl.		Appelez-nous	-
32	807389		Motor		Appelez-nous	-
33	804164		Screw 8 X 1/4 Lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
34	806793		Motor Mounting Plate		Appelez-nous	-
35	STD510603		Screw 6-32 X 5/16 Lg. C.r. Rd. Hd. Cad. Pl.		Appelez-nous	-
36	808868		Latch Tapping Plate		Appelez-nous	-
37	806794		Blower Plate		Appelez-nous	-
38	806230		Wheel & Clip Assembly		Appelez-nous	-
39	808765		Housing Assembly (includes Service Nos. 806794-blower Plate, 806797-blower Housing Gasket, 808738-bl		Appelez-nous	-
40	808738		Blower Housing		Appelez-nous	-
41	808706		Vent Stack		Appelez-nous	-
42	807813		Clamp		Appelez-nous	-
43	807891		Water Inlet Tubing (includes Service No. 807813-clamp (2))		Appelez-nous	-
44	808707		Water Inlet Nozzle		Appelez-nous	-
45	808818		Screw 8 X 1/2 Lg. C.r. Flat Hd. Cad. Pl.		Appelez-nous	-
46	806797		Blower Housing Gasket		Appelez-nous	-
47	805763		Tub Gasket Clip Kit (includes Service No. 808115-gasket Clip)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
