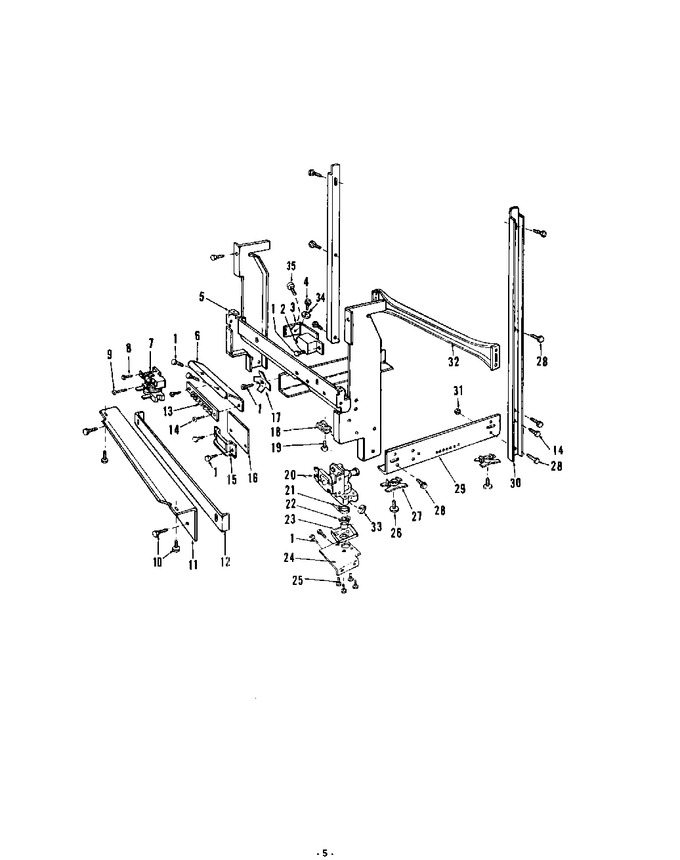

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw 8x3/8 Lg. C.r. Hex Hd. Cad. Pl.   (Replaces: 808658)			Immediately	$ 7.04
2	800222		Junction Box Cover		Appelez-nous	-
3	807019		Junction Box Bracket		Appelez-nous	-
4	807951		Screw 10-32x1/2 C.r. Hex Washer Hd. Cad. Pl.		Appelez-nous	-
5	807848		Hinge Weld Assembly		Appelez-nous	-
6	807849		Terminal Board Bracket		Appelez-nous	-
7	805255		Motor Relay		Appelez-nous	-
8	WP488234		Screw 8-32x1/4 Lg. C.r. Pan Hd. Cad. Pl.   (Replaces: 806593)				$ 6.07
9	804672		Screw 8-32x1 1/4 Lg. C.r. Oval Hd. Cad. Pl.		Appelez-nous	-
10	807001		Screw 1/4-20x1/2 Lg. Hex Washer Slotted Hd.black		Appelez-nous	-
11	807850		Toeplate		Appelez-nous	-
12	806295		Adjustable Toeplate		Appelez-nous	-
13	COMM PART		Terminal Block Assembly   (Replaces: 807486)		Appelez-nous	-
14	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
15	806723		Clamp - Wiring		Appelez-nous	-
16	COMM PART		Wire Shield   (Replaces: 808013)		Appelez-nous	-
17	807213		Grounding Terminal		Appelez-nous	-
18	808170		Speednut		Appelez-nous	-
19	807002		Screw 1/4-20x3/4 Lg. Hex Washer Slotted Hd. Black		Appelez-nous	-
20	DW53		Water Inlet Valve (includes Service No. 806100 Gasket)   (Replaces: 808556)				$ 44.41
21	806100		Gasket		Appelez-nous	-
22	808337		Inlet Fitting		Appelez-nous	-
23	808458		Inlet Fitting Retaining Plate		Appelez-nous	-
24	807613		Valve Mounting Bracket		Appelez-nous	-
25	808368		Screw 8-18bx5/8 Lg. Hex Hd. Zinc Pl.		Appelez-nous	-
26	807672		Leveler		Appelez-nous	-
27	807671		Teenut - Snap- In		Appelez-nous	-
28	806889		Screw 1/4-2ux1/2 Lg. Hex Washer Hd. Cad. Pl.		Appelez-nous	-
29	807851		Side Angle		Appelez-nous	-
30	808670		Support Channel		Appelez-nous	-
31	M0282005		Nut   (Replaces: 804619)				$ 7.07
32	807852		Rear Brace		Appelez-nous	-
33	808432		Flow Washer		Appelez-nous	-
34	807373		Washer		Appelez-nous	-
35	807950		Screw 10bx1/2 Lg. Hex Slot Hd. Cad. Pl.		Appelez-nous	-
