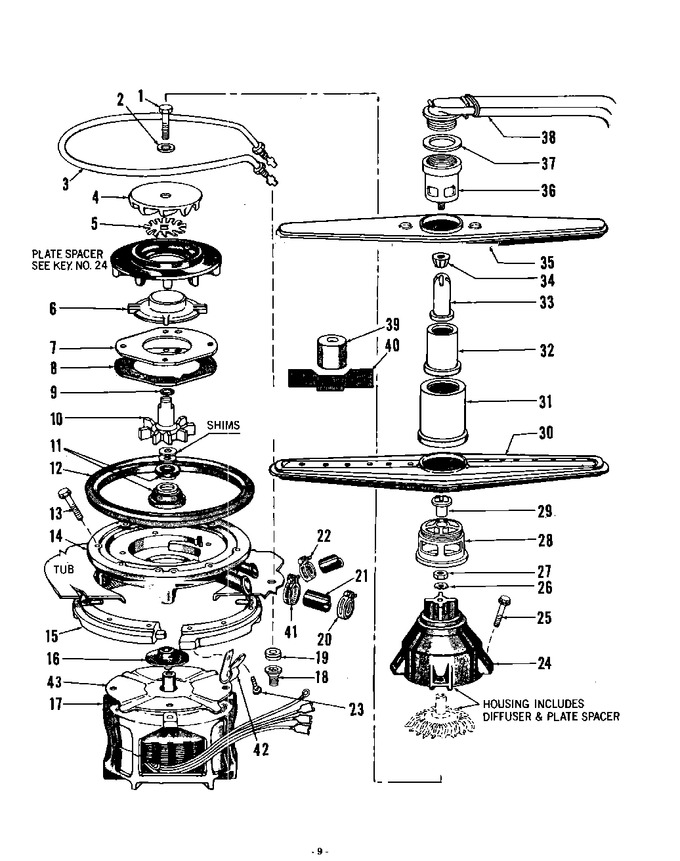

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806353		Screw 10-32x2 1/4 Lg. Hex Hd. St. St.		Appelez-nous	-
2	803367		Washer		Appelez-nous	-
3	806864		Heater (includes Service Nos. 806833-heater Grommet And 806834-heater Nut)		Appelez-nous	-
4	808041		Impeller - Upper		Appelez-nous	-
5	808075		Blade - Macerator		Appelez-nous	-
6	806267		Shroud - Impeller		Appelez-nous	-
7	807884		Plate - Pump		Appelez-nous	-
8	5300807709		Gasket - Pump   (Replaces: 807709)				$ 54.26
9	806521		``o`` Ring		Appelez-nous	-
10	5300808042		Pump Seal Kit (includes Service Nos. 803367-washer, 806521-o-ring, 803903-water Seal, 808041-upper I   (Replaces: 808042)		Appelez-nous	-
11	803903		Water Seal		Appelez-nous	-
12	807710		Pump Gasket		Appelez-nous	-
13	807268		Screw 10xl Lg. Hex Washer Hd. St. St.		Appelez-nous	-
14	807711		Pump Housing (includes Service No. 807712-clamp Ring)		Appelez-nous	-
15	807712		Clamp Ring		Appelez-nous	-
16	808561		Motor Slinger		Appelez-nous	-
17	806300		Motor Assembly (includes Service Nos. 806521-o-ring, 807077-seal Shim Gage, 808561-slinger)		Appelez-nous	-
18	154106202		Heater Nut 1/2 20 Brass   (Replaces: 806834)			Immediately	$ 18.32
19	5300806833		Grommet - Heater   (Replaces: 806833)				$ 5.34
20	805495		Hose Clamp		Appelez-nous	-
21	808174		Hose - Connector		Appelez-nous	-
22	806090		Drain Hose Clamp		Appelez-nous	-
23	807270		Screw 8 X 5/8 Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
24	806978		Housing Pump		Appelez-nous	-
25	807359		Screw 10 X 1 3/4 Lg. Hex Hd. St. St.		Appelez-nous	-
26	COMM PART		Lockwasher   (Replaces: 804526)		Appelez-nous	-
27	316205500		Nut   (Replaces: 804527)				$ 11.34
28	808175		Bearing		Appelez-nous	-
29	808176		Spray Arm Nut		Appelez-nous	-
30	808177		Spray Arm Assembly		Appelez-nous	-
31	808178		Tower Base		Appelez-nous	-
32	808179		Tower Section		Appelez-nous	-
33	808180		Tower Tip		Appelez-nous	-
34	808181		Nut		Appelez-nous	-
35	808259		Upper Spray Arm		Appelez-nous	-
36	808183		Distributor		Appelez-nous	-
37	808184		Gasket		Appelez-nous	-
38	808185		Elbow & Tube Assembly		Appelez-nous	-
39	803923		Seal Installation Tool		Appelez-nous	-
40	807077		Gage - Seal Shim		Appelez-nous	-
41	WP285655		Recirculating Hose Clamp   (Replaces: 808186)			Immediately	$ 7.55
42	808442		Clamp		Appelez-nous	-
43	808435		Water Shield		Appelez-nous	-
