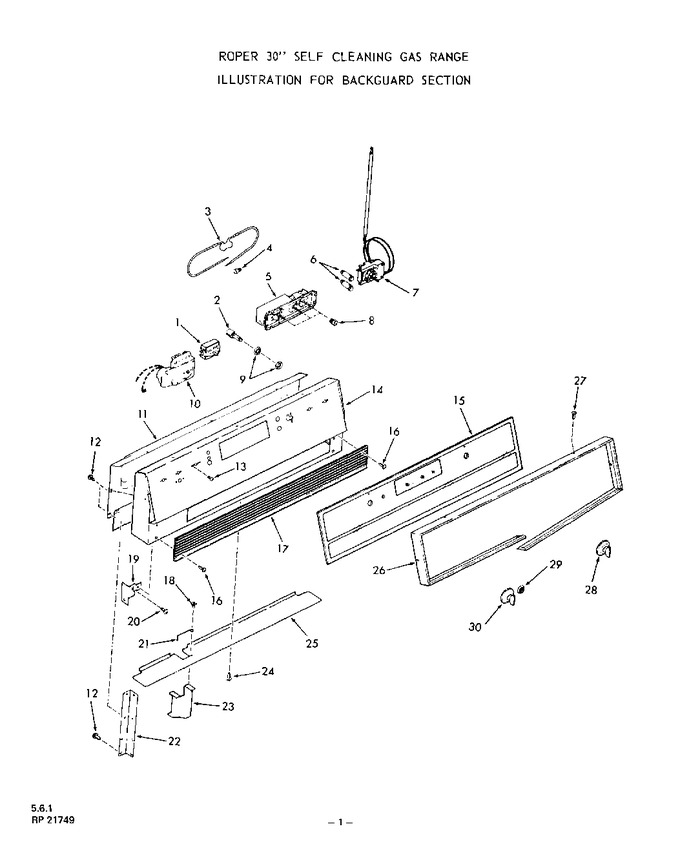

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310574		Selector Switch		Appelez-nous	-
2	307574		Push Switch (lock-unlock)		Appelez-nous	-
3	300326		Wire Lead W/resister		Appelez-nous	-
4	66763		Wire Connector (2 Required)			Immediately	$ 662.32
5	314101		Clock W/1hr Timer		Appelez-nous	-
6	231665		Indicator Light		Appelez-nous	-
7	310985		Oven Thermostat		Appelez-nous	-
8	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
9	236129		Pal Nut		Appelez-nous	-
10	281698		Timer		Appelez-nous	-
11	312055		Wire Cover-backguard		Appelez-nous	-
12	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
13	78565		Screw 8-32x3/16``		Appelez-nous	-
14	311521		Crosstie		Appelez-nous	-
15	311141		Glass-backguard		Appelez-nous	-
16	303820		Screw 6-32 X 3/8``		Appelez-nous	-
17	311134		Bottom Trim-crosstie		Appelez-nous	-
18	70588		Clip		Appelez-nous	-
19	293566		Bracket-backguard (right)		Appelez-nous	-
19	293565		Bracket-backguard (left)		Appelez-nous	-
20	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
21	279264		Retainer-wire   (Replaces: 239255)			Immediately	$ 67.07
22	299575		Support-backguard (lt. Or Rt.)		Appelez-nous	-
23	286889		Wire Shield-backguard		Appelez-nous	-
24	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
25	307599		Shield-controls		Appelez-nous	-
26	308007		Bezel-backguard		Appelez-nous	-
27	295268		Screw 6-32x3/8``		Appelez-nous	-
28	311101		Knob-oven Thermostat		Appelez-nous	-
29	109883		Nut-trim 3/8-27		Appelez-nous	-
30	311102		Knob-selector Switch		Appelez-nous	-
