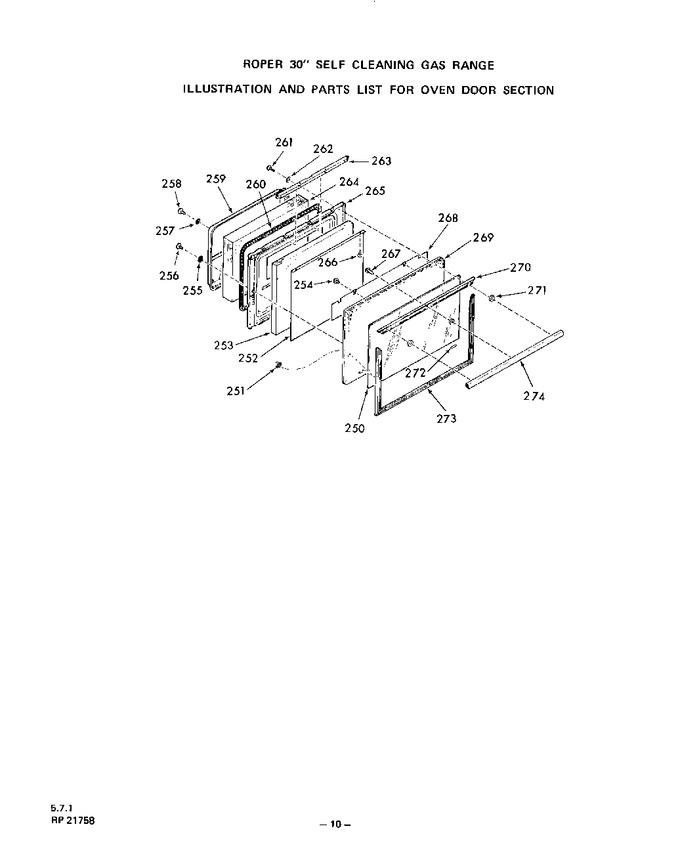

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
250	319297		Outer Door Glass		Appelez-nous	-
251	300007		Fastener (7 Required)		Appelez-nous	-
252	304129		Insulation Retainer		Appelez-nous	-
253	304128		Insulation-oven Door Lining		Appelez-nous	-
254	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
255	109156		Lockwasher		Appelez-nous	-
256	102376		Screw 10-32 X 1/2``		Appelez-nous	-
257	106462		Washer		Appelez-nous	-
258	316365		Screw 10-32x7/16``		Appelez-nous	-
259	311639		Plug-oven Door Lining		Appelez-nous	-
260	282441		Gasket-oven Door		Appelez-nous	-
261	318930		Screw 10-32x2-1/2``		Appelez-nous	-
262	21067		Washer		Appelez-nous	-
263	282090		Stiffener-oven Door Lining		Appelez-nous	-
264	310962		Insulation Oven Door Plug		Appelez-nous	-
265	304102		Lining-oven Door		Appelez-nous	-
266	WP112432		Screw 10-32x2-1/2``   (Replaces: 311484)				$ 7.16
267	313190		Screw 10-32x1``		Appelez-nous	-
268	310916		Shield-oven Door Lining		Appelez-nous	-
269	316391		Front Panel-oven Door (white)		Appelez-nous	-
269	316394		Front Panel-oven Door (golden Wheat)		Appelez-nous	-
269	316395		Front Panel-oven Door (almond)		Appelez-nous	-
270	319294		Top Frame-oven Door Glass		Appelez-nous	-
271	DE81-05147A		Spacer (3 Required)   (Replaces: 107158)				$ 205.79
272	112370		Cushion (6 Required)		Appelez-nous	-
273	319292		Frame-oven Door Glass		Appelez-nous	-
274	316398		Handle-oven Door		Appelez-nous	-
274	311529		Wire Harness-switch		Appelez-nous	-
274	311576		Wire Harness-main		Appelez-nous	-
274	320711		Repair Parts Manual		Appelez-nous	-
274	313302		Gas Use & Care Guide		Appelez-nous	-
274	320713		Installation A& Reference Guide		Appelez-nous	-
274	320714		Operating Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
