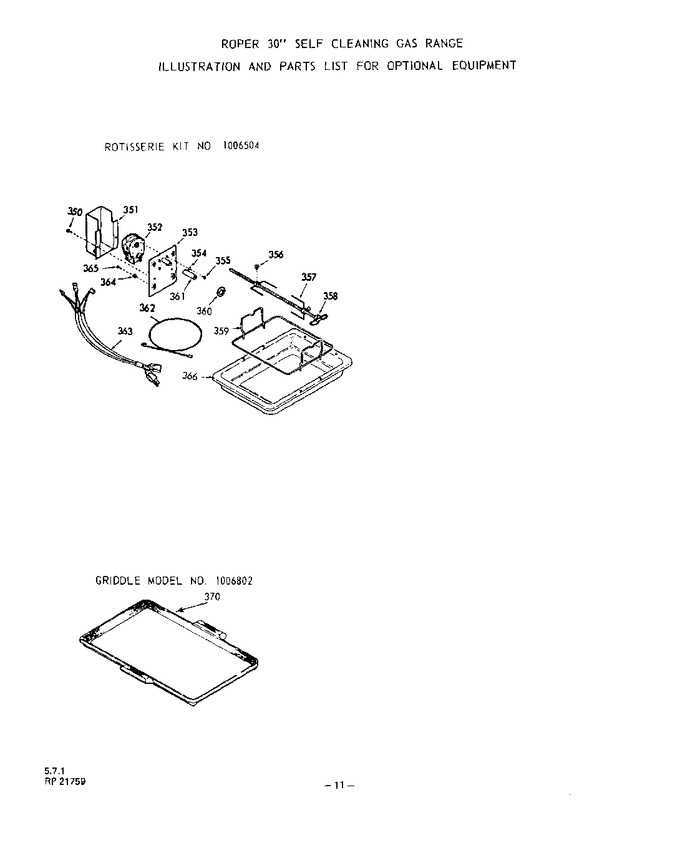

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 350 | 105771 | Screw 10 - 32 X 1/4`` |
|
- | |||||
| 351 | 282918 | Cover - Rotisserie Motor |
|
- | |||||
| 352 | 106575 | Rotisserie Motor |
|
- | |||||
| 352 | 280199 | Switch (for Key No 352) |
|
- | |||||
| 353 | 282920 | Mounting Bracket-rotisserie Motor |
|
- | |||||
| 354 | 282920 | Lockwasher 3/16`` |
|
- | |||||
| 355 | 70655 | Screw 8-32x1/4`` |
|
- | |||||
| 356 | 70287 | Thumbscrew |
|
- | |||||
| 357 | 88433 | Skewer |
|
- | |||||
| 358 | 100092 | Rotisserie Spit |
|
- | |||||
| 359 | 232137 | Spit Support |
|
$ 57.34 | |||||
| 360 | 100095 | Plug Button |
|
- | |||||
| 361 | 282925 | Guide Extension - Rotisserie Motor |
|
- | |||||
| 362 | 284278 | Fixture Wire Lead (white) |
|
- | |||||
| 362 | 291284 | Fixture Wire Lead (black) |
|
- | |||||
| 363 | 282924 | Rotisserie Cord |
|
- | |||||
| 364 | 69603 | Lockwasher |
|
- | |||||
| 365 | 102376 | Screw 10-32 X 1/2`` |
|
- | |||||
| 366 | 291397 | Rotisserie Pan |
|
- | |||||
| 366 | 300668 | Installation Instructions |
|
- | |||||
| 370 | 1006802 | Set-on-griddle (optional) |
|
- |
