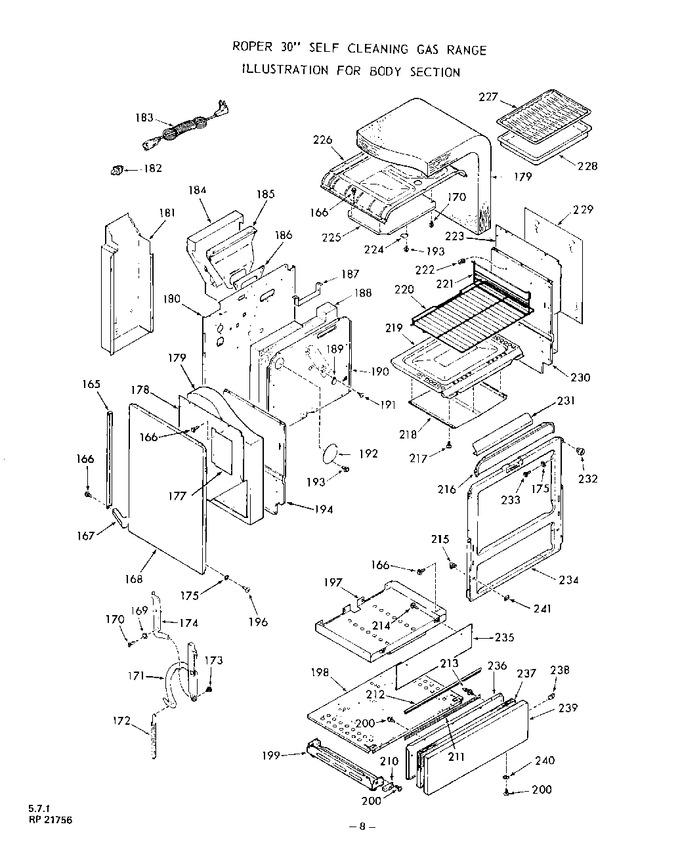

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
165	309986		Stiffener - Body Side (lt. Or Rt.)		Appelez-nous	-
166	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
167	293420		Lower Support - Body Side (right)		Appelez-nous	-
167	293421		Lower Support - Body Side (left)		Appelez-nous	-
168	312072		Body Side (inc Key 229) Lt Or Rt (almond)		Appelez-nous	-
168	312068		Body Side (inc Key 229) Lt Or Rt (white)		Appelez-nous	-
168	312071		Body Side (inc Key 229) Lt Or Rt (golden Wheat)		Appelez-nous	-
169	69648		Lockwasher			Immediately	$ 17.61
170	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
171	293971		Oven Door Hinge (inc Key 173) Lt Or Rt		Appelez-nous	-
172	282683		Spring-oven Door (lt Or Rt)		Appelez-nous	-
173	293224		Shoulder Rivet		Appelez-nous	-
174	301389		Oven Door Hinge Bracket (inc Key 173) (left)		Appelez-nous	-
174	310390		Oven Door Hinge Bracket (inc Key 173) (right)		Appelez-nous	-
175	106462		Washer		Appelez-nous	-
177	311029		Baffel-side Panel (lt Or Rt)		Appelez-nous	-
178	310515		Upper Insulation Retainer-lt		Appelez-nous	-
179	282953		Insulation-oven Top & Sides		Appelez-nous	-
180	312014		Main Back		Appelez-nous	-
181	310579		Wire Cover		Appelez-nous	-
182	232150		Disconnect		Appelez-nous	-
183	281381		Range Service Cord		Appelez-nous	-
184	310577		Cover-flue Deflector		Appelez-nous	-
185	294197		Flue Deflector		Appelez-nous	-
186	282157		Gasket-flue Deflector		Appelez-nous	-
187	282156		Insulation Retainer - Flue		Appelez-nous	-
188	282535		Insulation-oven Back		Appelez-nous	-
189	229607		Cover Plate, Rotisserie		Appelez-nous	-
190	312013		Oven Back		Appelez-nous	-
191	289730		Shoulder Bolt		Appelez-nous	-
192	282245		Cover Plate		Appelez-nous	-
193	316365		Screw 10-32x7/16``		Appelez-nous	-
194	285482		Oven Side-left		Appelez-nous	-
196	282634		Screw 8abx3/4``		Appelez-nous	-
197	310541		Bottom-over Burner		Appelez-nous	-
198	319808		Main Bottom		Appelez-nous	-
199	310964		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
200	102376		Screw 10-32 X 1/2``		Appelez-nous	-
210	W10900107		Support - Snap On Panel (lt. Or Rt.)   (Replaces: 311211)			Immediately	$ 51.87
211	295277		Retainer - Seal		Appelez-nous	-
212	295278		Seal		Appelez-nous	-
213	313671		Strike (2 Required)		Appelez-nous	-
214	316365		Screw 10-32x7/16``		Appelez-nous	-
215	71003		Catch-lt Or Rt		Appelez-nous	-
216	282118		Front Panel-broiler Burner		Appelez-nous	-
217	97220		Screw 6-32x1/4``		Appelez-nous	-
218	28212		Baffle-oven Bottom		Appelez-nous	-
219	283457		Oven Bottom (inc Key 218)		Appelez-nous	-
220	305361		Oven Rack (2 Req)		Appelez-nous	-
221	306149		Oven Rack Guide (right)		Appelez-nous	-
221	306150		Oven Rack Guide (left)		Appelez-nous	-
222	288392		Retainer-thermostat Bulb		Appelez-nous	-
223	310514		Upper Insulation Retainer-rt		Appelez-nous	-
224	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
225	285860		Baffle - Oven Top		Appelez-nous	-
226	282102		Oven Top		Appelez-nous	-
227	282273		Broiler Pan Grid		Appelez-nous	-
228	282278		Broiler Pan		Appelez-nous	-
229	239603		Heat Reflector - Rt. Or Lt.		Appelez-nous	-
230	294195		Oven Side - Rt.		Appelez-nous	-
231	281574		Heat Shield-broiler Burner		Appelez-nous	-
232	100576		Screw Grommet		Appelez-nous	-
233	316365		Screw 10-32x7/16``		Appelez-nous	-
234	312073		Front Frame W/rivets		Appelez-nous	-
235	304125		Reflector - Front Frame		Appelez-nous	-
236	4396923		Lining-snap On Panel   (Replaces: 310976)			Immediately	$ 52.04
237	282952		Insulation		Appelez-nous	-
238	108069		Speed Nut 10 - 32		Appelez-nous	-
239	311514		Front - Snap On Panel (white)		Appelez-nous	-
239	311517		Front Panel-snap On Panel (golden Wheat)		Appelez-nous	-
239	211518		Front Panel-snap On Panel (almond)		Appelez-nous	-
240	21067		Washer		Appelez-nous	-
241	310218		Washer		Appelez-nous	-
