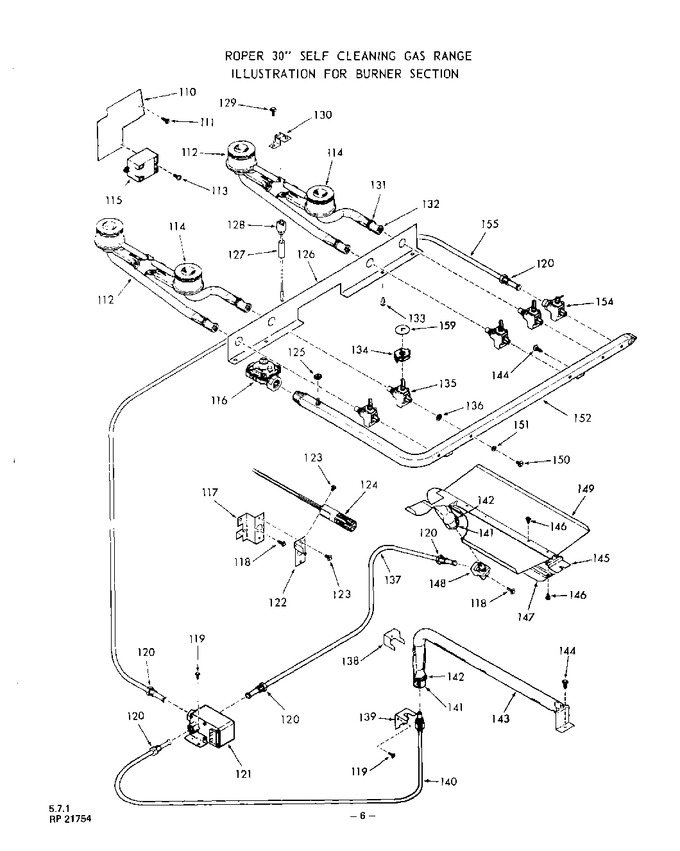

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
110	310527		Bracket-module		Appelez-nous	-
111	239114		Screw 10-32x1/2``		Appelez-nous	-
112	310199		Rear Tip Burner (rt Or Lt)		Appelez-nous	-
113	105667		Screw 6-32x3/8``		Appelez-nous	-
114	1039438		Front Top Burner (lt Or Rt)   (Replaces: 310198)				$ 397.14
115	312267		Module-spark Igniter		Appelez-nous	-
116	314056		Pressure Regulator		Appelez-nous	-
117	310497		Bracket-igniter (oven Burner)		Appelez-nous	-
118	316365		Screw 10-32x7/16``		Appelez-nous	-
119	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
120	113384		Inverted Nut 3/8``		Appelez-nous	-
121	306267		Dual Control Valve		Appelez-nous	-
122	311689		Bracket-igniter (ov Or Broil Burner)		Appelez-nous	-
123	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
124	WP3149400		Igniter (ov Or Broil Burner)   (Replaces: 311846)			Immediately	$ 81.46
125	74056		Keps Nut 10-24		Appelez-nous	-
126	310416		Shield-valve Wires		Appelez-nous	-
127	310031		Spacer-rt Or Lt		Appelez-nous	-
128	313629		Electrode-spark Igniter (right)		Appelez-nous	-
128	312454		Electrode-spark Igniter (left)		Appelez-nous	-
129	316365		Screw 10-32x7/16``		Appelez-nous	-
130	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
131	301911		Adjustment Screw-air Shutter		Appelez-nous	-
132	301910		Air Shutter		Appelez-nous	-
133	102376		Screw 10-32 X 1/2``		Appelez-nous	-
134	310253		Switch (1 Ea For Key 135)		Appelez-nous	-
135	313224		Gas Valve (4 Required)		Appelez-nous	-
136	304239		Silicone Rubber Gasket (1ea For Keys 135,154)		Appelez-nous	-
137	310905		Tubing 3/8`` (cont Valve To Broil Burner)		Appelez-nous	-
138	282122		Support-oven Burner		Appelez-nous	-
139	282112		Bracket-orifice Fitting		Appelez-nous	-
140	312076		Tubing 3/8`` W/orifice		Appelez-nous	-
141	213988		Air Shutter		Appelez-nous	-
142	312989		Adjustment Screw -air Shutter		Appelez-nous	-
143	318449		Oven Burner		Appelez-nous	-
144	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
145	318758		Broil Burn Asm (inc Keys 141,142,147,149)		Appelez-nous	-
146	97217		Screw 10-32x7/16``		Appelez-nous	-
147	302904		Lower Baffle - Broiler Burner		Appelez-nous	-
148	311981		Broiler Orifice Fitting		Appelez-nous	-
149	300263		Upper Baffle-broiler Burner		Appelez-nous	-
150	311455		Mounting Screw (5 Required)		Appelez-nous	-
151	304241		Silicone Rubber Gasket (1 Ea For Key 150)		Appelez-nous	-
152	312743		Manifold Pipe		Appelez-nous	-
154	312437		Shut Off Valve		Appelez-nous	-
155	310903		Tubing 3/8`` (shut-off To Oven Control)		Appelez-nous	-
159	306589		Shield-top Burner Valve		Appelez-nous	-
