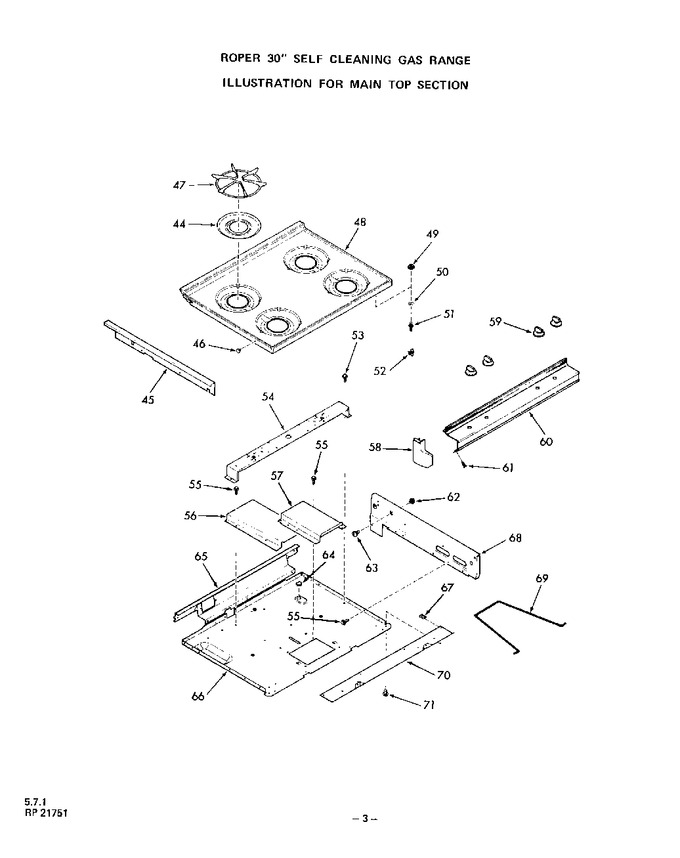

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
44	310385		Spill Bowl (4 Required)		Appelez-nous	-
45	306680		Side Trim-main Top (left)		Appelez-nous	-
45	306681		Side Trim-main Top (right)		Appelez-nous	-
46	239815		Plug Bottom (2 Required)		Appelez-nous	-
47	316786		Top Grate (4 Required)		Appelez-nous	-
48	316803		Main Top (golden Wheat)		Appelez-nous	-
48	316801		Main Top (white)		Appelez-nous	-
48	316802		Main Top (almond)		Appelez-nous	-
49	239764		Keps Nut 8-32		Appelez-nous	-
50	74417		Washer		Appelez-nous	-
51	299784		Strike-main Top (2 Required)		Appelez-nous	-
52	24667		Catch-main Top Strike (2 Required)		Appelez-nous	-
53	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
54	312585		Support-top Burner		Appelez-nous	-
55	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
56	310417		Cover-lock Rod		Appelez-nous	-
57	310418		Cover-lock		Appelez-nous	-
58	239671		End Cap-side Trim (left)		Appelez-nous	-
58	WP238460		End Cap-side Trim (right)   (Replaces: 239672)				$ 6.78
59	304425		Knob-gas Valve (4 Required)		Appelez-nous	-
60	311105		Manifold Panel		Appelez-nous	-
61	112604		Screw 8-32x1/2``		Appelez-nous	-
62	74056		Keps Nut 10-24		Appelez-nous	-
63	69027		Shoulder Bolt		Appelez-nous	-
64	239831		Plug Bottom		Appelez-nous	-
65	00573829		Support-main Top   (Replaces: 310575)			Immediately	$ 27.48
66	310406		Burner Box Bottom		Appelez-nous	-
67	306711		Speed Nut		Appelez-nous	-
68	310735		Extention-burner Box (right)		Appelez-nous	-
68	310734		Extention-burner Box (left)		Appelez-nous	-
69	284164		Support Rod-main Top		Appelez-nous	-
70	3L530		Front Extention-burner Box   (Replaces: 310415)				$ 11.90
71	97217		Screw 8 - 32x3/8``		Appelez-nous	-
