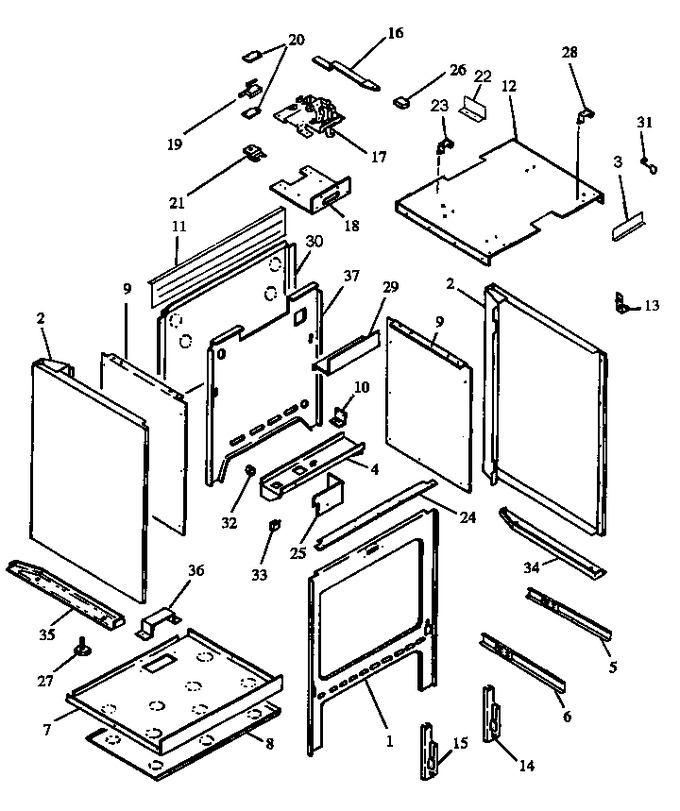

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note See Note Front Frame Not Field Replaceable		Appelez-nous	-
2	316293B		Panel, Side (blk)		Appelez-nous	-
3	Y0309721		Shield, Clock Heat		Appelez-nous	-
4	0307065		Shelf, Gas Valve		Appelez-nous	-
5	0314663		Track, Storage Dwr Rh		Appelez-nous	-
6	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
7	Y0308317		Insul, Ret.-bottom		Appelez-nous	-
8	Y0315146		Shield, Heat		Appelez-nous	-
9	0304282		Retainer, Insulation (side)		Appelez-nous	-
10	0053182		Bracket, Gas Valve		Appelez-nous	-
12	0309444		Retainer, Top Insul.		Appelez-nous	-
13	0304971		Bracket, Spark Module		Appelez-nous	-
14	Y0314382		Kit, Door Hinge(rh-ss)		Appelez-nous	-
15	Y0314380		Kit, Door Hinge(lh-hs)		Appelez-nous	-
16	303040B		Handle, Door Latch (blk)		Appelez-nous	-
17	Y0063733		Latch Assembly		Appelez-nous	-
18	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
19	Y0304579		Latch Switch Hi Temp		Appelez-nous	-
20	Y0091523		Insulation, Esm		Appelez-nous	-
21	Y0302316		Bracket, Switch		Appelez-nous	-
22	Y0308924		Shield, Fan Heat		Appelez-nous	-
23	Y0308923		Bracket, Fan Mtg		Appelez-nous	-
24	Y0315148		Filler, Front Frame		Appelez-nous	-
25	Y0058916		Cover, Electrical		Appelez-nous	-
26	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
27	314187B		Leg,leveling Xxx		Appelez-nous	-
29	Y0306827		Cover, Electrical		Appelez-nous	-
30	Y0300026		Cover Plate, Rear		Appelez-nous	-
31	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
32	308655B		Bushing, Snap (blk)		Appelez-nous	-
33	Y0091587		Cable, Clip Esm		Appelez-nous	-
34	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
35	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
36	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
37	0308316		Retainer, Rear Insul		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
NI	Y0066765		Screw 6-32 X 3/8		Appelez-nous	-
NI	Y0309733		Heat Shield, Broil		Appelez-nous	-
NI	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
NI	Y0092365		Screw 4-40x1		Appelez-nous	-
NI	Y0301028		Bracket		Appelez-nous	-
NI	Y0301555		Anchor, Plastic		Appelez-nous	-
NI	Y0306654		Power Cord		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
