Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0303463 Assy, Inner Flue Appelez-nous -
2 Y0304019 Channel, Broil Burner Appelez-nous -
3 0306651 Weldm`t, Broil Chamber Appelez-nous -
4 Y0315022 Cover, Chip Appelez-nous -
5 Y0063802 Burner Box, Lower Appelez-nous -
6 WP314763J Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J) Special Order $ 70.11

7 303465CG Oven Shell (gas W/lt) Appelez-nous -
8 4396923 Pan, Broiler (cg)   (Replaces: 314175CG) In-Stock Immediately $ 52.04

9 4396923 Grid, Broiler (cg)   (Replaces: 304451CG) In-Stock Immediately $ 52.04

10 Y0058852 Bracket, Oven Cavity Appelez-nous -
11 W11245710 Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445) In-Stock Immediately $ 12.65

12 Y0315018 Brkt, Broil Orifice Appelez-nous -
13 304578B Dilution Flue Appelez-nous -
14 Y0314197 Insul, Outer Wrapper Appelez-nous -
15 Y0095197 Insulation,wrapper Appelez-nous -
16 Y0062945 Sub 41966, Insulation Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

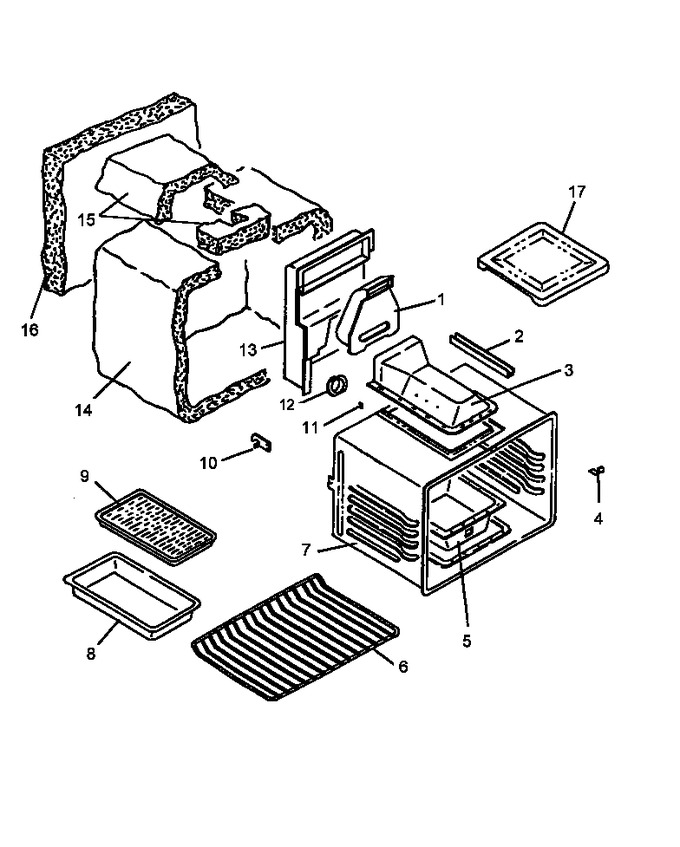

Diagram for AGS746E (BOM: P1130736N E)
