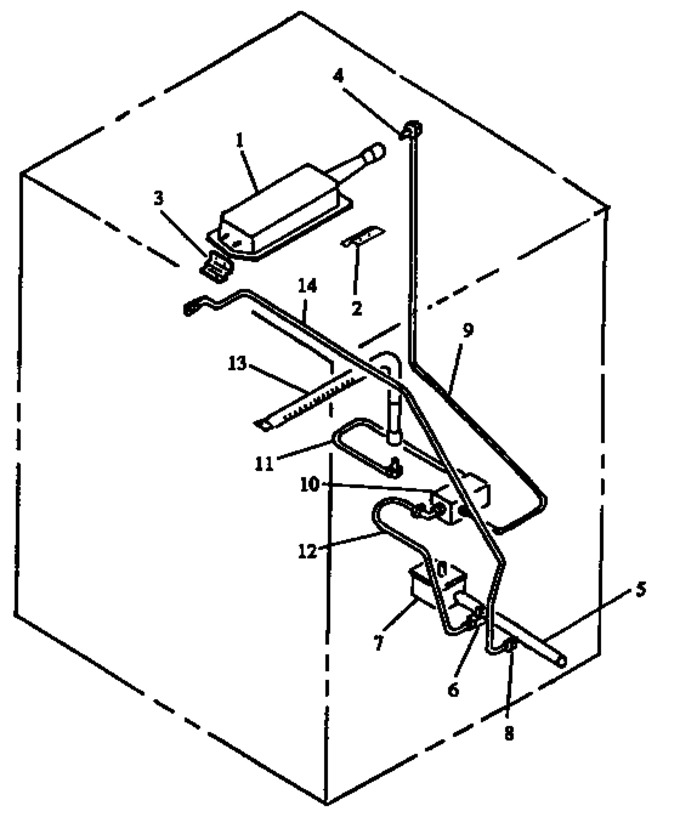

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0060691		Assy, Br. Burner		Appelez-nous	-
2	Y0303112		Bracket Ignitor Mtg		Appelez-nous	-
3	Y0060687		Bracket, Mtg. Br. Support		Appelez-nous	-
4	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
4	Y0063060		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
5	0303247		Inlet Pipe		Appelez-nous	-
6	Y0301361		Valve, Shut-off		Appelez-nous	-
7	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
8	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
8	Y0303219		Fitting 1/4 Npt X 3/8 Comp		Appelez-nous	-
9	Y0306593		Assy, Orifice & Tubing		Appelez-nous	-
10	Y0300664		Valve, Gas		Appelez-nous	-
11	Y0300685		Tubing, Oven Burner		Appelez-nous	-
12	Y0300684		Tubing, Inlet To Gas Valve		Appelez-nous	-
13	Y0063709		Oven Burner		Appelez-nous	-
14	0304631		Tubing, Inlet To Right Manifol		Appelez-nous	-
14	0304794		Tubing, Inlet, Left Manifold		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
NI	Y0097871		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
NI	M0282005		Nut K   (Replaces: Y0078790)				$ 7.07
NI	Y0072230		Screw No.6-32 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
