Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 306519B Wrapper, Stor Drawer Appelez-nous -
2 Y063702B Drawer Panel Black Appelez-nous -
3 306521B Liner, Stor Drawer Appelez-nous -
4 0314664 Runner Storage Dwr-lh Appelez-nous -
5 Y0314665 Runner Storage Dwr-rh Appelez-nous -
NI Y0303777 Screw No.8-18 X .375 (bl) Appelez-nous -
NI W11245710 Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445) In-Stock Immediately $ 12.65


    View Diagram in Separate Window     Print Icon   Print Part List

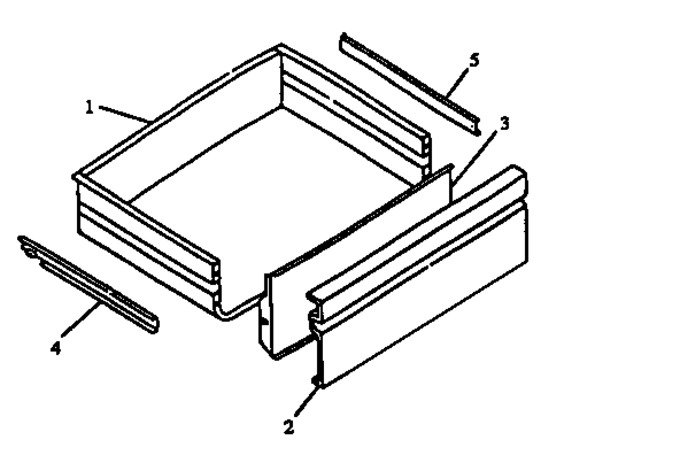

Diagram for AGS746E (BOM: P1130736N E)
