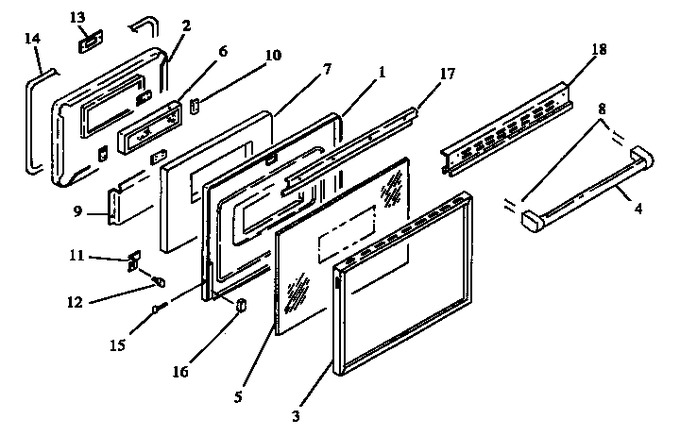

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302725CG		Door Backer, Electric (cg)		Appelez-nous	-
2	314693CG		Pad, Ov Dr W/window		Appelez-nous	-
3	306538B		Frame, Glass Door (black)		Appelez-nous	-
4	309624B		Handle, Oven Door (blk)		Appelez-nous	-
5	314510B		Glass, Oven Door		Appelez-nous	-
6	0304831		Window Assy		Appelez-nous	-
7	0062614		Insulation,door-sub Backer		Appelez-nous	-
8	Y0079863		Screw, No.10-24x3/8 (ph Trs Hd)		Appelez-nous	-
9	306449B		Heat Baffle, Glass (black)		Appelez-nous	-
10	Y0052629		Retainer, Door Glass		Appelez-nous	-
11	Y0062439		Support Bracket, Glass		Appelez-nous	-
12	Y0063661		Bumper, Oven Door		Appelez-nous	-
13	Y052039F		Latch Plate		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	Y0060247		Bumper, Rubber		Appelez-nous	-
17	306450B		Back, Heat Baffle (black)		Appelez-nous	-
18	315028B		Trim, Door Top-blk		Appelez-nous	-
NI	0300584		Label,cleaning Instr.		Appelez-nous	-
NI	Y0303777		Screw No.8-18 X .375 (bl)		Appelez-nous	-
NI	Y0307910		Support, Door Glass		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	Y0306782		Shield, Dr Glass Heat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
