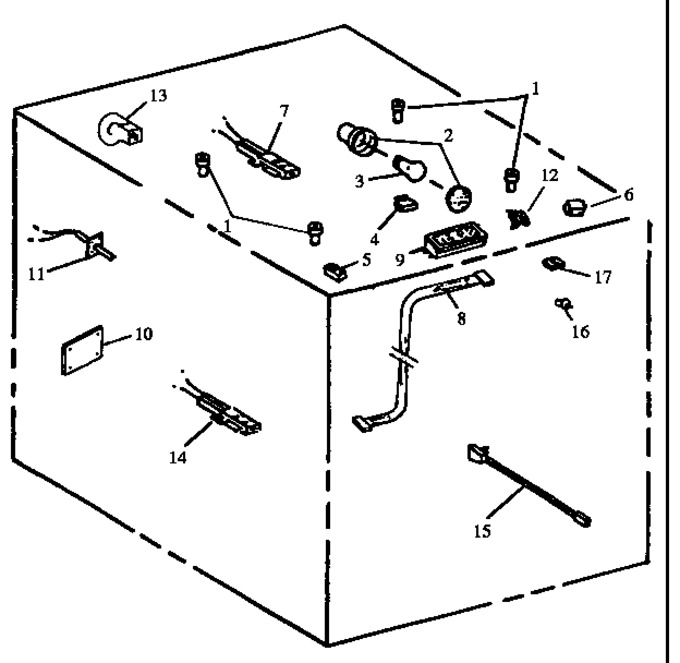

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0309358		Assy, Electrode		Appelez-nous	-
2	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
3	Y0042175		Bulb, Light		Appelez-nous	-
4	Y0304579		Latch Switch Hi Temp		Appelez-nous	-
5	Y0300570		Switch,oven Light Xx Blk		Appelez-nous	-
6	Y0305451		Kit,spark Module(service)		Appelez-nous	-
7	786324		Ignitor   (Replaces: Y0309145)			Immediately	$ 60.68
8	Y0308714		Harness, Wire (erc/pc Board)		Appelez-nous	-
9	Y0308716		Control, Electronic Rge		Appelez-nous	-
10	Y0301277		Circuit Board, Erc-electric		Appelez-nous	-
11	Y0300769		Sensor, Erc		Appelez-nous	-
12	Y0308416		Switch, Limit Cont.		Appelez-nous	-
13	Y0308607		Blower, Erc Clg		Appelez-nous	-
14	786324		Ignitor   (Replaces: Y0309145)			Immediately	$ 60.68
15	Y0306654		Power Cord		Appelez-nous	-
16	Y0314367		Switch, Oven Light		Appelez-nous	-
17	Y0303524		Spark Switch		Appelez-nous	-
NI	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
NI	Y0065084		Wire Connector		Appelez-nous	-
NI	Y0307393		Harness,ign Wire 31``		Appelez-nous	-
NI	Y0307394		Harness,ign Wire 20``		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	0063781		Shield, Top Igniter		Appelez-nous	-
NI	Y0308104		Ignitor Shield-bottom		Appelez-nous	-
NI	786324		Assy, Broil Ignitor   (Replaces: Y0308103)			Immediately	$ 60.68
NI	M0282005		Nut K   (Replaces: Y0078790)				$ 7.07
NI	Y0308417		Control, Fan		Appelez-nous	-
