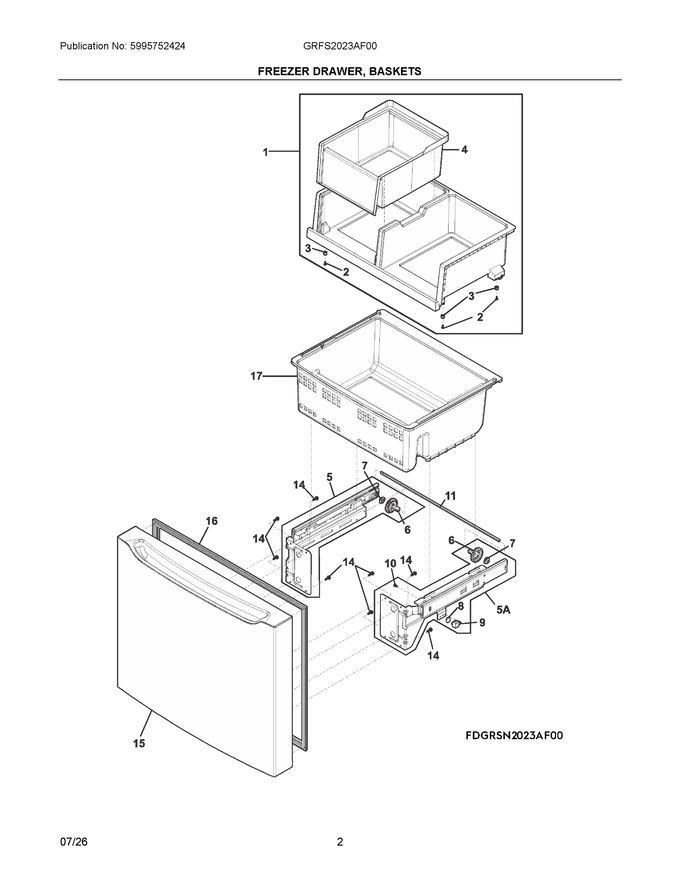

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140236516039		Drawer Assembly, Freezer, Upper, W/ice Container   (Replaces: 5304536732)		Appelez-nous	-
2	811949503		Screw, Truss, 4.2 X 13				$ 3.03
3	5304532074		Cushion, Rubber, Freezer Drawer		Appelez-nous	-
4	5304536733		Ice Container, Freezer Drawer			Immediately	$ 76.55
5	5304536710		Slider Assembly, Freezer Drawer, Lh, W/gear-bearing				$ 164.69
6	140025649017		Gear, Pinion   (Replaces: 5304524001)			Immediately	$ 4.58
7	5304519043		Bearing, Pad, Gear				$ 9.86
8	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
9	5304535665		Support, Magnet, White				$ 3.33
10	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
11	5304536712		Shaft, Telescopic Rail				$ 46.54
14	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
15	140316357023		Door Assembly, Freezer Drawer, Stainless   (Replaces: 5304536920)		Appelez-nous	-
16	5304536714		Gasket, Freezer Door				$ 43.77
17	5304536731		Basket, Freezer Drawer				$ 66.92
5A	5304536711		Slider Assembly, Freezer Drawer, Rh, W/gear-magnet				$ 166.49

    View Diagram in Separate Window       Print Part List
