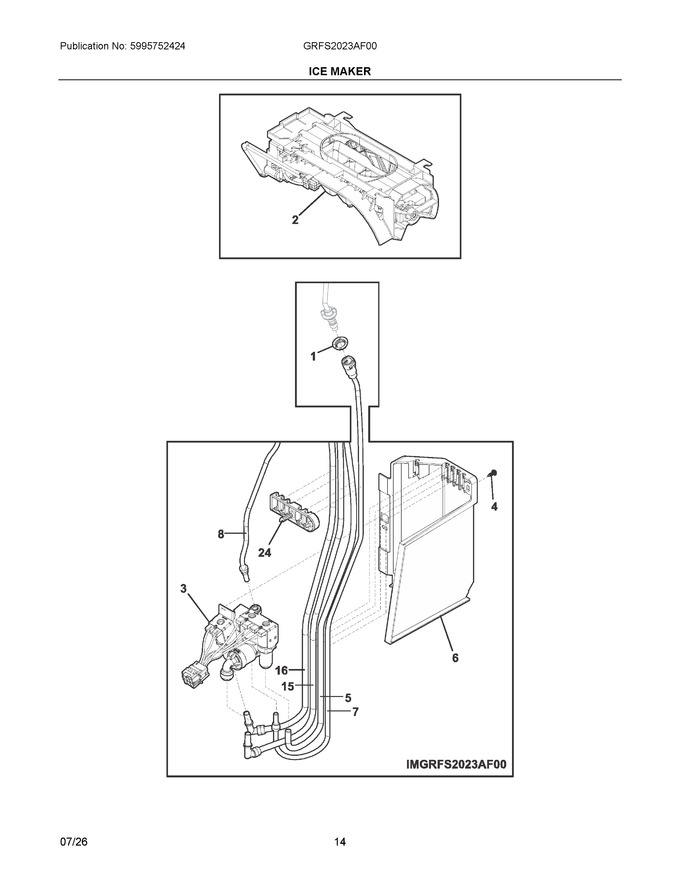

08 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535774 | Nut, Click Connex, Male |
|
$ 2.33 | |||||
| 2 | 243297618 | Ice Maker, Assembly, Automatic, Archer |
|
$ 136.35 | |||||
| 3 | 5304536701 | Valve Assembly, Water |
|
Immediately | $ 150.92 | ||||
| 4 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 5 | 140300373309 | Tube Valve To Ewd |
|
- | |||||
| 6 | 5304536702 | Cover, Water Valve, And Tubing |
|
$ 40.04 | |||||
| 7 | 5304536706 | Tubing Assembly, Ice Maker Fill, Green, W/female Connex |
|
$ 38.07 | |||||
| 8 | 140133073076 | Tube Assembly, Water, Inlet, Valve |
|
- | |||||
| 15 | 5304536704 | Tubing, Water, Natural, Valve, To Filter |
|
$ 16.94 | |||||
| 16 | 5304536705 | Tubing, Water, Brown, Valve, To Filter |
|
Immediately | $ 16.48 | ||||
| 24 | 140316202013 | Clamp Water Tube |
|
- | |||||
| NIA | 5304529162 | Cap, Tubing |
|
$ 4.55 |
