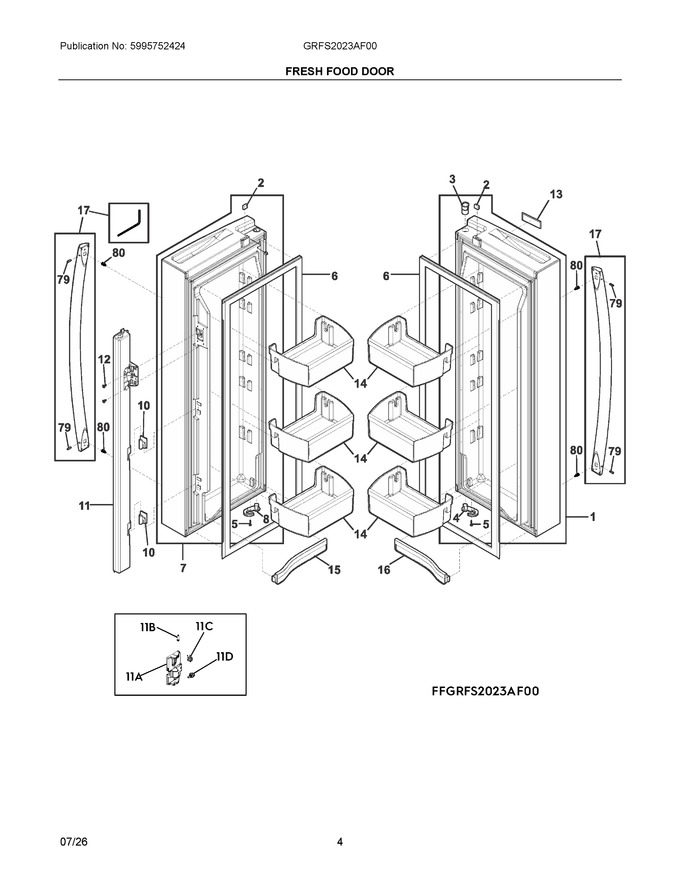

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536919		Door Assembly, Fresh Food, Stainless, Rh			Immediately	$ 263.14
2	140026775019		Sensor, Magnet, Switch, Reed				$ 4.11
3	5304529296		Bearing, Upper, Rh Door				$ 9.14
4	140010465148		Bearing, Door, Auto Closer				$ 6.00
5	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
6	5304536737		Gasket, Door, Fresh Food				$ 45.05
7	140316357015		Door Assembly Complete, Refrigerator, Left Opening, Stainless		Appelez-nous	-
8	140010465163		Bearing, Door, Lh, Auto Closer			Immediately	$ 5.11
10	140013762046		Hinge, Flip Mullion, Bottom/middle				$ 3.28
11	5304536738		Flip Mullion, Assembly, Grey, Fresh Food				$ 106.37
12	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
13	5304512150		Nameplate, Chrome, Frig Gallery			Immediately	$ 58.15
14	5304536739		Bin, Door, Gallon				$ 14.69
15	5304536740		Rack, Door, Lh Lower			Immediately	$ 3.88
16	5304536741		Rack, Door, Rh Lower				$ 4.91
17	5304536742		Handle Set, Stainless, (qty 2), W/alen Wrench				$ 250.83
79	218755405		Screw-set, 10-32 X 0.375   (Replaces: 218755408)			Immediately	$ 20.56
80	5304519063		Screw, Handle Mounting			Immediately	$ 11.48
11A	5304538938		Hinge, Flip Mullion, Upper		Appelez-nous	-
11B	140045805011		Bearing, Spring, Flip Mullion		Appelez-nous	-
11C	140013719012		Spring, Flip Mullion		Appelez-nous	-
11D	8119728023		Grommet, Mullion		Appelez-nous	-
NI	5304538857		Door Adjusts Kit				$ 4.17

    View Diagram in Separate Window       Print Part List
