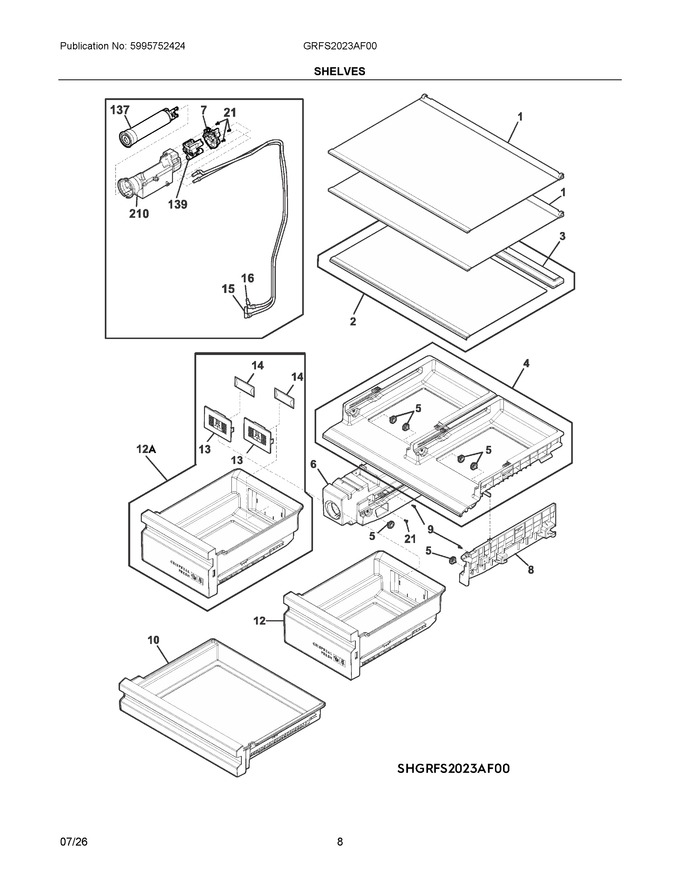

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537043 | Shelf Assembly, Fresh Food, Glass, W/trim |
|
$ 102.56 | |||||
| 2 | 5304536723 | Crisper Cover, Assembly, W/membrane Assy |
|
$ 101.46 | |||||
| 3 | 5304537078 | Membrane Assembly, Humidity, Crisper Cover (Replaces: 5304536724) |
|
- | |||||
| 4 | 5304536725 | Deli Cover, Assembly, W/rollers |
|
$ 146.16 | |||||
| 5 | 5304519124 | Roller, Crisper Glide |
|
$ 16.84 | |||||
| 6 | 5304536726 | Support Assembly, Complete, Lh, W/manifold |
|
$ 112.97 | |||||
| 7 | 5304536727 | Bracket, Filter Manifold |
|
$ 9.58 | |||||
| 8 | 5304536930 | Support Assembly, Deli Drawer, Rh, W/roller |
|
- | |||||
| 9 | 5304536681 | Screw, Hilo, M4.2 X 16 |
|
$ 0.35 | |||||
| 10 | 140236516039 | Drawer Assembly, Deli |
|
- | |||||
| 12 | 140236540054 | Vegetable Box Assembly |
|
- | |||||
| 13 | 5304536931 | Cover, Absorber, Ethylene |
|
Immediately | $ 5.50 | ||||
| 14 | FRPAPK2RF | Frigidaire Pa Pk-2 Refill |
|
Immediately | $ 32.14 | ||||
| 15 | 5304536704 | Tubing, Water, Natural, Valve, To Filter |
|
$ 16.94 | |||||
| 16 | 5304536705 | Tubing, Water, Brown, Valve, To Filter |
|
Immediately | $ 16.48 | ||||
| 21 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 137 | FPPWFU01 | Filter, Water, Wf-1, Frig Purepour |
|
Immediately | $ 80.38 | ||||
| 139 | 140156010054 | Manifold, Water Filter |
|
$ 30.57 | |||||
| 210 | 5304531689 | Support, Water Filter |
|
Immediately | $ 11.13 | ||||
| 12A | 140236540062 | Vegetable Box Assembly, W/absorber Lid, 2x |
|
- |
