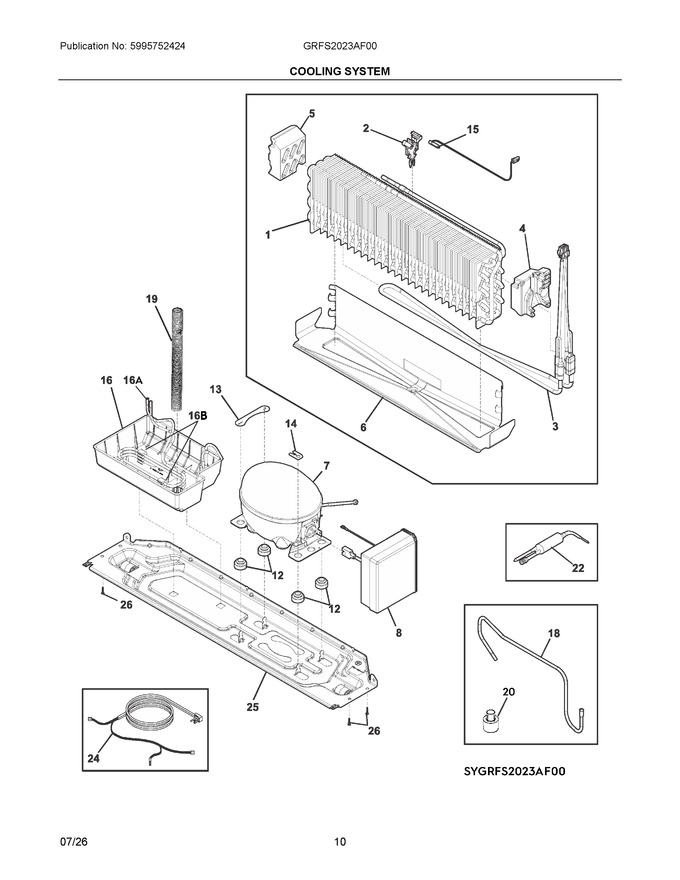

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536686		Evaporator, Assembly			Immediately	$ 141.11
2	5304536687		Clip, Evaporator				$ 2.53
3	5304536688		Heater, Defrost, 2 Pass, Evaporator			Immediately	$ 163.67
4	5304536689		Support, Evaporator, Rh				$ 6.65
5	5304536690		Support, Evaporator, Lh				$ 6.65
6	5304536691		Trough, Heat Shield, Evaporator				$ 49.76
7	5304536694		Compressor, Vtx1113y			Immediately	$ 423.00
8	5304536695		Pc Board, Inverter				$ 252.48
12	811978901		Grommet, Compressor		Appelez-nous	-
13	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 2.89
14	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
15	5303918851		Thermostat Kit, Defrost, W/connectors			Immediately	$ 36.75
16	5304536696		Drain Pan, Assembly, W/heater Tube				$ 46.16
18	5304536697		Tube, Suction, Jumper				$ 28.72
19	140023599107		Tube, Drain Hose		Appelez-nous	-
20	140010204018		Joint Tube, Drain		Appelez-nous	-
22	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
24	5304536756		Cord, Power, Electric Service				$ 29.68
25	5304536679		Base Assembly, Compressor, W/rollers				$ 59.69
26	808199001		Screw, Self Tapping, 6 X 20				$ 7.09
16A	140100808090		Tube, Heater, Drain Pan, Type R		Appelez-nous	-
16B	140036378010		Spacer, Damper, 3-ways		Appelez-nous	-
NI	811949503		Screw, Truss, 4.2 X 13				$ 3.03
NI	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
NI	5304532654		Screw, Flex Drive, 4*10 Hi Lo		Appelez-nous	-
