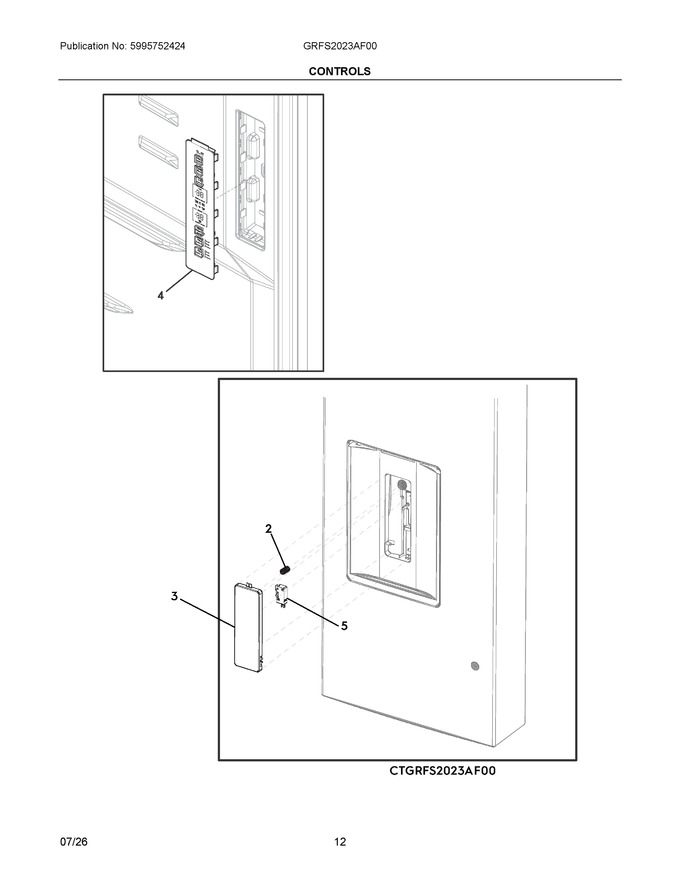

07 - Controls
08 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.11 | ||||
| 3 | 140280968011 | Paddle, Water, Dispenser |
|
- | |||||
| 4 | 5304536684 | User Interface, Assembly, W/board-overlay |
|
Immediately | $ 165.16 | ||||
| 5 | 8582418701057 | Switch Dispenser Paddle |
|
- | |||||
| NI | 5304536709 | Insulator, Dispenser Tube |
|
$ 3.13 |
