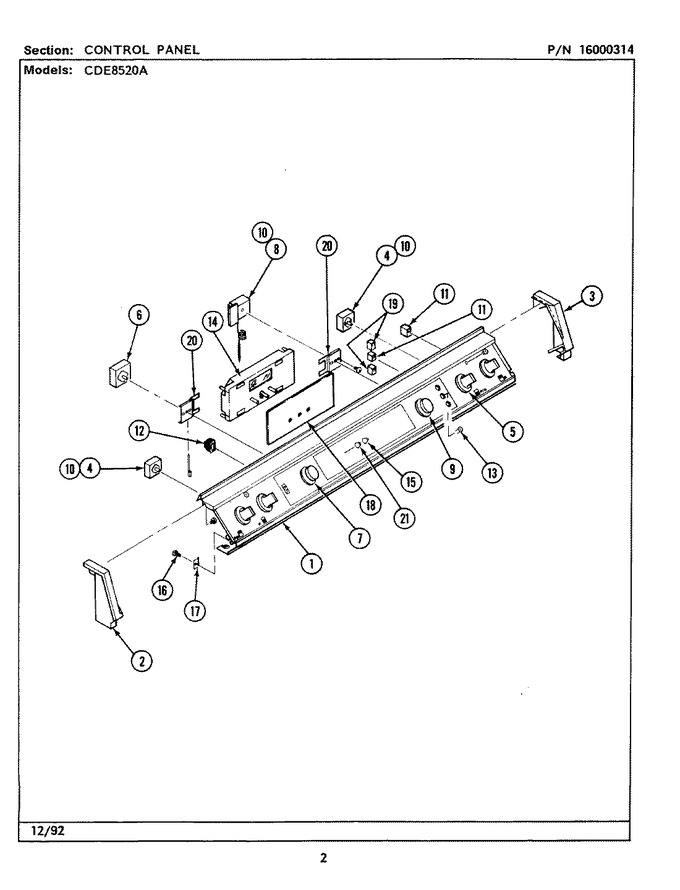

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705101 | Panel, Control | 00 |
|
- | ||||
| 2 | 702388 | Cap, End (lt) | 00 |
|
- | ||||
| 3 | Y702387 | Cap, End (rt) | 00 |
|
- | ||||
| 4 | W11120791 | Switch, Infinite (Replaces: 703650) | 00 |
|
Immediately | $ 98.55 | |||
| 5 | 12200034 | Knob, Infinite (blk) (Replaces: Y704613) | 00 |
|
$ 95.17 | ||||
| 6 | Y703673 | Switch, Selector | 00 |
|
- | ||||
| 7 | 704627 | Knob, Selector | 00 |
|
- | ||||
| 8 | Y703674 | Thermostat | 00 |
|
$ 133.57 | ||||
| 9 | 703886 | Knob, Thermostat Cwe601 | 00 |
|
- | ||||
| 10 | 71002058 | Extrusion, Top/bottom (Replaces: Y704863) | 00 |
|
$ 5.82 | ||||
| 11 | Y702614 | Light, Surface Indicator 120v | 00 |
|
- | ||||
| 12 | Y704311 | Switch, Oven Light (blk) | 00 |
|
- | ||||
| 13 | 703126 | Lens, Pilot (amber) | 00 |
|
- | ||||
| 14 | Y703708 | Clock | 00 |
|
- | ||||
| 15 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 00 |
|
$ 12.13 | ||||
| 16 | Y702976 | Screw, Hex | 00 |
|
- | ||||
| 17 | 702616 | Bracket, Retaining | 00 |
|
- | ||||
| 18 | 704608 | Lens, Timer (wht) | 00 |
|
$ 209.07 | ||||
| 19 | Y704222 | Light, Oven Pilot (240v) | 00 |
|
- | ||||
| 20 | 703667 | Bracket, Clock | 00 |
|
- | ||||
| 21 | 703716 | Harness,wire (supply) | 00 |
|
- | ||||
| 21 | 703752 | Wire, Resistor Therm. | 00 |
|
- | ||||
| 21 | 703523 | Wire, Orange (right) | 00 |
|
- | ||||
| 21 | 703749 | Wire, Orange | 00 |
|
- | ||||
| 21 | 705103 | Harness, Wire | 00 |
|
- | ||||
| 21 | WP7711P492-60 | Knob, Clock (sm/blk) (Replaces: Y704239) | 00 |
|
$ 12.13 | ||||
| 21 | 704243 | Wire, Brown | 00 |
|
- | ||||
| 21 | 704244 | Wire, Blue | 00 |
|
- |
