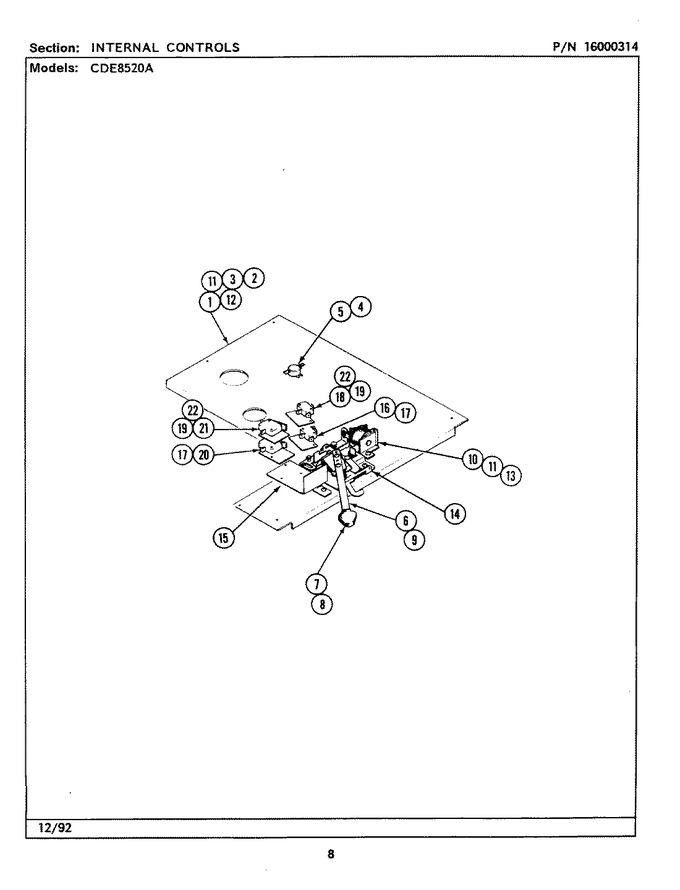

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704154 | Panel, Top | 00 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 00 |
|
Immediately | $ 7.04 | |||
| 3 | 702746 | Tie, Mount Cable | 00 |
|
- | ||||
| 4 | WP12990527 | Screw (Replaces: Y708955) | 00 |
|
Immediately | $ 7.15 | |||
| 5 | WP7403P899-60 | Switch, Hi-limit (Replaces: Y702548) | 00 |
|
Immediately | $ 181.29 | |||
| 6 | Y703848 | Lever, Latch (wht) | 00 |
|
- | ||||
| 7 | 701670 | Knob, Lever | 00 |
|
- | ||||
| 8 | 701671 | Spring, Knob | 00 |
|
- | ||||
| 9 | 707407 | Screw | 00 |
|
$ 6.42 | ||||
| 10 | Y702526 | Solenoid | 00 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: Y700502) | 00 |
|
Immediately | $ 7.04 | |||
| 12 | 702697 | Bracket,stiffener | 00 |
|
- | ||||
| 13 | Y701686 | Pin, Cotter | 00 |
|
- | ||||
| 14 | Y703357 | Latch Assy. | 00 |
|
- | ||||
| 15 | 701706 | Shield, Switch | 00 |
|
- | ||||
| 16 | Y702360 | Switch, Solenoid | 00 |
|
- | ||||
| 17 | Y702350 | Insulator | 00 |
|
- | ||||
| 18 | Y703732 | Switch, Latch | 00 |
|
- | ||||
| 19 | 703264 | Insulator | 00 |
|
- | ||||
| 20 | Y702359 | Switch, Solenoid Micro | 00 |
|
- | ||||
| 21 | 702806 | Switch, Door | 00 |
|
- | ||||
| 22 | 702807 | Screw | 00 |
|
- | ||||
| 22 | 703750 | Wire, Grey | 00 |
|
- |
