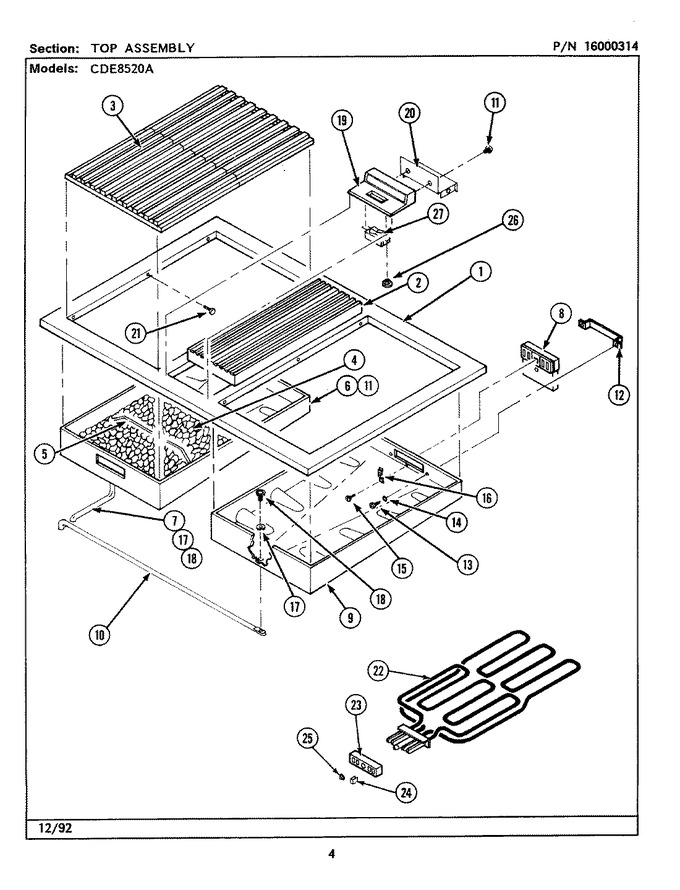

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701853 | Top | 00 |
|
- | ||||
| 2 | 702568 | Grill, Air | 00 |
|
- | ||||
| 3 | 707886 | Grate | 00 |
|
- | ||||
| 4 | 708929 | Plate, Rock | 00 |
|
- | ||||
| 5 | 700819 | Support, Rock Plate | 00 |
|
$ 71.81 | ||||
| 6 | Y712197 | Wire, Brown | 00 |
|
- | ||||
| 6 | Y712203 | Wire, Violet | 00 |
|
- | ||||
| 6 | 701955 | Pan, Grill (lt) | 00 |
|
- | ||||
| 6 | Y712200 | Wire, Yellow | 00 |
|
- | ||||
| 6 | Y712227 | Wire, Blue | 00 |
|
- | ||||
| 7 | Y702463 | Tube, Drain (left) | 00 |
|
- | ||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 00 |
|
Immediately | $ 96.61 | |||
| 9 | Y701956 | Pan, Grill (rt) | 00 |
|
- | ||||
| 10 | Y702327 | Tube, Drain (right) | 00 |
|
- | ||||
| 11 | 703003 | Screw | 00 |
|
- | ||||
| 12 | Y702698 | Bracket | 00 |
|
- | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 00 |
|
$ 6.98 | ||||
| 14 | Y707664 | Washer | 00 |
|
- | ||||
| 15 | WP489128 | Screw (Replaces: Y707341) | 00 |
|
$ 9.79 | ||||
| 16 | 74004835 | Clip (Replaces: Y702699) | 00 |
|
$ 11.37 | ||||
| 17 | 702747 | Washer, Teflon | 00 |
|
- | ||||
| 18 | 702748 | Nut, Drain Tube | 00 |
|
- | ||||
| 19 | 705095 | Escutcheon, Air Grill | 00 |
|
- | ||||
| 20 | 702581 | Bracket, Filler | 00 |
|
- | ||||
| 21 | W11233072 | Screw (Replaces: Y707347) | 00 |
|
Immediately | $ 12.62 | |||
| 22 | Y700532 | Energy Saver 208v | 00 |
|
- | ||||
| 22 | WP5700M426-60 | Element, Grill (Replaces: Y700452) | 00 |
|
$ 382.26 | ||||
| 23 | WPY708730 | Block, Terminal (Replaces: Y708730) | 00 |
|
Immediately | $ 87.44 | |||
| 24 | Y700450 | Clip, Shunt | 00 |
|
$ 9.51 | ||||
| 25 | Y708862 | Nut, Speed | 00 |
|
$ 13.08 | ||||
| 26 | Y705023 | Palnut | 00 |
|
- | ||||
| 27 | Y705094 | Switch, Fan | 00 |
|
- |
