01 - Blower Motor
02 - Body
03 - Control Panel
04 - Cooling & Convection Fan Components
05 - Door/access Panel
06 - Internal Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:

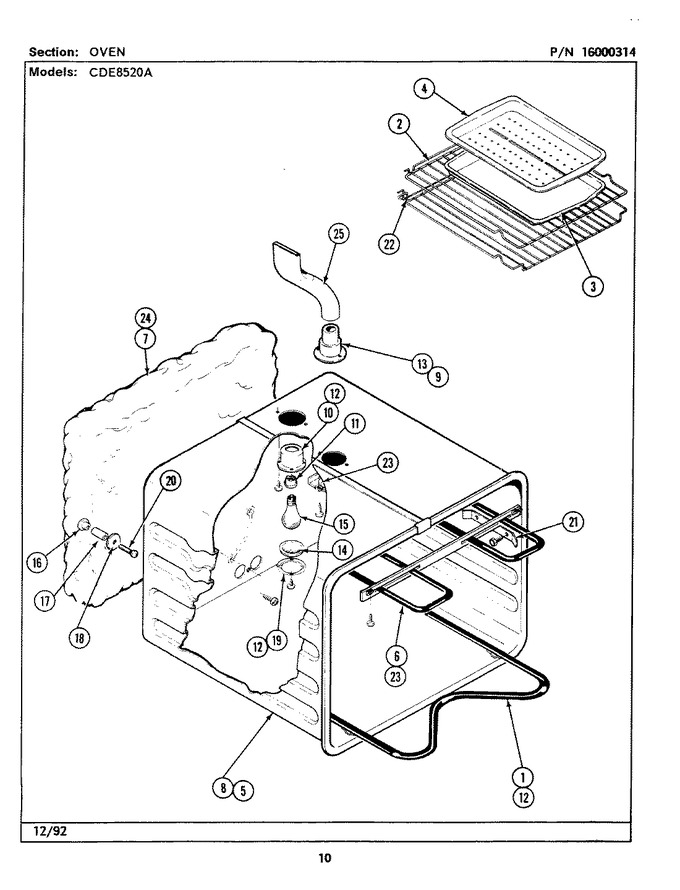

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY04100021 | Element, Bake (240v) (Replaces: Y704664) | 00 |
|
$ 179.82 | ||||
| 2 | Y704660 | Rack, Oven | 00 |
|
$ 104.03 | ||||
| 3 | 4396923 | Pan, Broil (Replaces: 703164) | 00 |
|
Immediately | $ 52.04 | |||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 703165) | 00 |
|
Immediately | $ 52.04 | |||
| 5 | Y702618 | Clip, Oven | 00 |
|
- | ||||
| 6 | WPY04100514 | Element, Broil (240v) (Replaces: Y704666) | 00 |
|
$ 138.97 | ||||
| 7 | 702283 | Insulation-back | 00 |
|
- | ||||
| 8 | 712599 | Oven Assy. | 00 |
|
- | ||||
| 9 | WP1163283 | Screw (Replaces: Y703741) | 00 |
|
$ 6.47 | ||||
| 10 | 704142 | Receptacle, Holder | 00 |
|
- | ||||
| 11 | Y704145 | Receptacle, Snap-in | 00 |
|
- | ||||
| 12 | WP179051 | Screw (Replaces: 708764) | 00 |
|
Immediately | $ 7.16 | |||
| 13 | 701738 | Tube, Vent | 00 |
|
- | ||||
| 14 | Y704143 | Lens, Light | 00 |
|
- | ||||
| 15 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 00 |
|
Immediately | $ 16.80 | |||
| 16 | 715294 | Nut, Tee | 00 |
|
- | ||||
| 17 | 705252 | Spacer | 00 |
|
- | ||||
| 18 | 701736 | Washer | 00 |
|
- | ||||
| 19 | Y704144 | Retainer, Lens | 00 |
|
- | ||||
| 20 | 705170 | Screw | 00 |
|
- | ||||
| 21 | Y701541 | Clip, Bulb | 00 |
|
- | ||||
| 22 | Y704662 | Rack, Oven (offset) | 00 |
|
- | ||||
| 23 | Y702632 | Shield, Vent | 00 |
|
- | ||||
| 24 | 702282 | Insulation-sides,top,bottom | 00 |
|
- | ||||
| 25 | WPW10253196 | Screw (Replaces: Y707113) | 00 |
|
$ 3.76 | ||||
| 25 | Y705342 | Cover, Sensor Hole | 00 |
|
- | ||||
| 25 | 702290 | Tube, Vent | 00 |
|
- |
