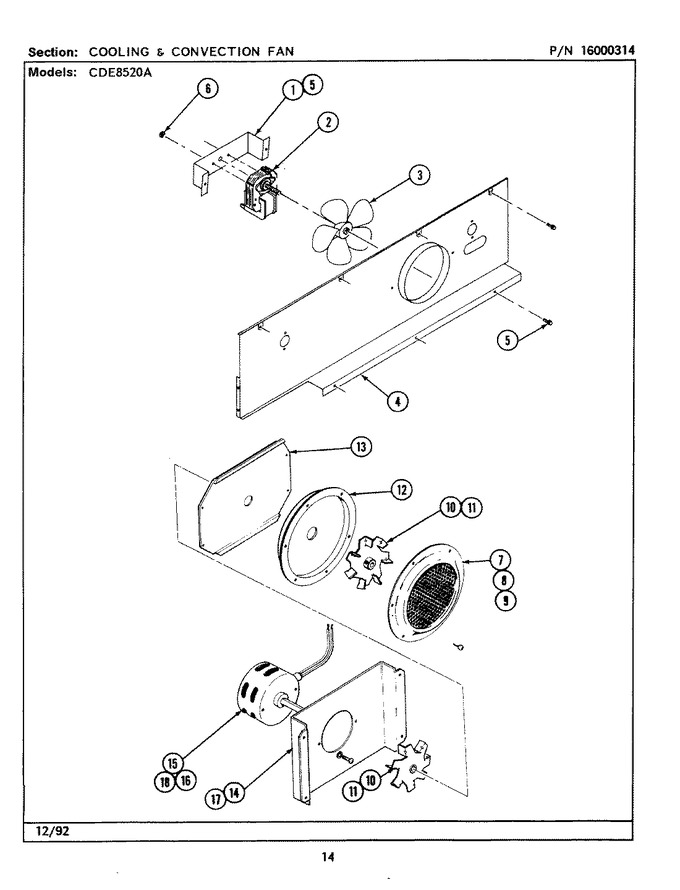

04 - Cooling & Convection Fan Components
05 - Door/access Panel
06 - Internal Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y702542 | Bracket, Mounting Motor | 00 |
|
- | ||||
| 2 | Y702549 | Motor, Fan | 00 |
|
- | ||||
| 3 | Y702525 | Blade, Fan | 00 |
|
- | ||||
| 4 | Y702345 | Plate, Back | 00 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 715773) | 00 |
|
Immediately | $ 7.04 | |||
| 6 | 703648 | Harness, Backsplash | 00 |
|
- | ||||
| 6 | M0282005 | Nut, Hex (Replaces: 701719) | 00 |
|
$ 7.07 | ||||
| 7 | 701707 | Plate, Convection Front | 00 |
|
- | ||||
| 8 | WP1163283 | Screw (Replaces: Y703741) | 00 |
|
$ 6.47 | ||||
| 9 | WP74003976 | Washer (Replaces: 702592) | 00 |
|
$ 6.47 | ||||
| 10 | 701711 | Wheel, Convection | 00 |
|
- | ||||
| 11 | 701709 | Screw, Set | 00 |
|
- | ||||
| 12 | DE81-03744A | Plate, Convection Back (Replaces: 701712) | 00 |
|
$ 312.62 | ||||
| 13 | DE81-03745A | Cover, Motor Front (Replaces: 701713) | 00 |
|
$ 251.40 | ||||
| 14 | Y700601 | Plate, Motor Mount | 00 |
|
- | ||||
| 15 | Y703035 | Motor, Convect | 00 |
|
- | ||||
| 16 | WP488234 | Screw (Replaces: 708861) | 00 |
|
$ 6.07 | ||||
| 17 | WP12990527 | Screw (Replaces: Y708955) | 00 |
|
Immediately | $ 7.15 | |||
| 18 | 715910 | Washer, Lock | 00 |
|
- |
