01 - Blower Motor
02 - Body
03 - Control Panel
04 - Cooling & Convection Fan Components

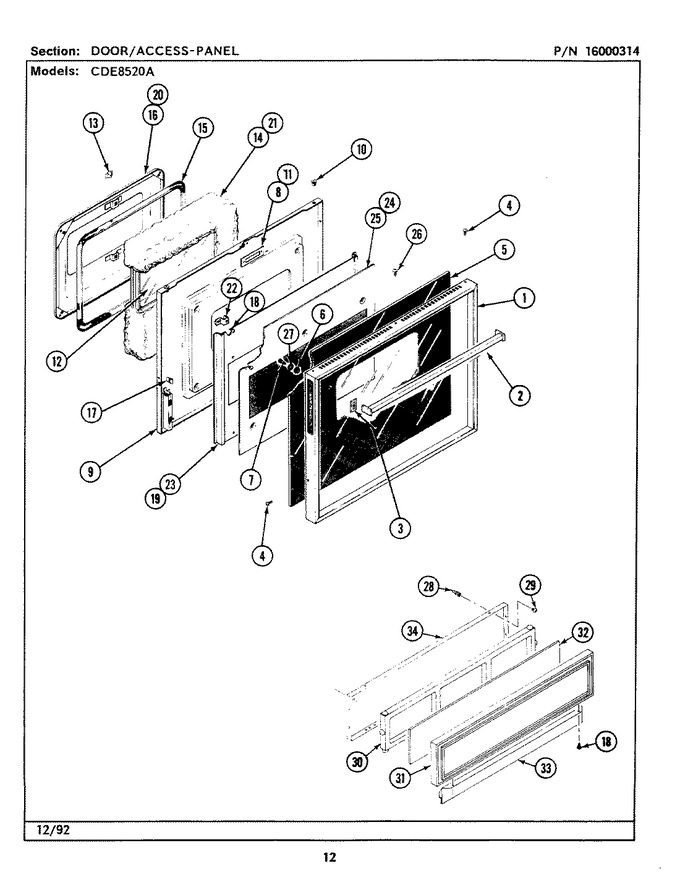

05 - Door/access Panel
06 - Internal Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704997 | Frame | 00 |
|
- | ||||
| 2 | 704610 | Handle, Oven Door | 00 |
|
- | ||||
| 3 | 703862 | Spacer, Door Cwe1000 | 00 |
|
- | ||||
| 4 | 704745 | Screw, Flat | 00 |
|
- | ||||
| 5 | 704609 | Glass, Screened | 00 |
|
- | ||||
| 6 | 715939 | Bushing | 00 |
|
- | ||||
| 7 | W11164114 | Screw (no.10-24) ----sub (Replaces: Y703532) | 00 |
|
$ 3.76 | ||||
| 8 | Y712010 | Plate, Latch (upper) | 00 |
|
- | ||||
| 9 | 712567 | Liner | 00 |
|
- | ||||
| 10 | 701643 | Nut, Push In | 00 |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 701662) | 00 |
|
$ 12.14 | ||||
| 12 | 701648 | Window Pack | 00 |
|
- | ||||
| 13 | Y700503 | Clip, Retainer | 00 |
|
- | ||||
| 14 | 702293 | Insulation | 00 |
|
- | ||||
| 15 | WPY702338 | Seal, Oven Door (Replaces: Y702338) | 00 |
|
Immediately | $ 172.53 | |||
| 16 | 712011 | Plug, Oven Door Weld | 00 |
|
- | ||||
| 17 | 704487 | Clip | 00 |
|
- | ||||
| 18 | W11233072 | Screw (Replaces: Y707347) | 00 |
|
Immediately | $ 12.62 | |||
| 19 | Y704223 | Bumper, Button | 00 |
|
- | ||||
| 20 | 701660 | Insulation, Top | 00 |
|
- | ||||
| 21 | 702292 | Insulation, Bottom | 00 |
|
- | ||||
| 22 | 701652 | Bracket, Stand-off | 00 |
|
- | ||||
| 23 | 703782 | Baffle | 00 |
|
- | ||||
| 24 | WPY706189 | Screw (Replaces: 700906) | 00 |
|
Immediately | $ 6.47 | |||
| 25 | DE81-09358A | Panel, Perforated (upr) (Replaces: 703784) | 00 |
|
$ 54.82 | ||||
| 26 | W11233072 | Screw (Replaces: Y708733) | 00 |
|
Immediately | $ 12.62 | |||
| 27 | Y700446 | Washer | 00 |
|
$ 5.27 | ||||
| 28 | Y702633 | Stud, Ball | 00 |
|
- | ||||
| 29 | 71002058 | Screw (Replaces: Y702124) | 00 |
|
$ 5.82 | ||||
| 30 | Y702896 | Spacer, Base Door | 00 |
|
- | ||||
| 31 | 702340 | Frame, Door | 00 |
|
- | ||||
| 32 | Y702342 | Panel, Base | 00 |
|
- | ||||
| 33 | Y702744 | Panel, Kick | 00 |
|
- | ||||
| 34 | Y702341 | Liner, Door | 00 |
|
- |
