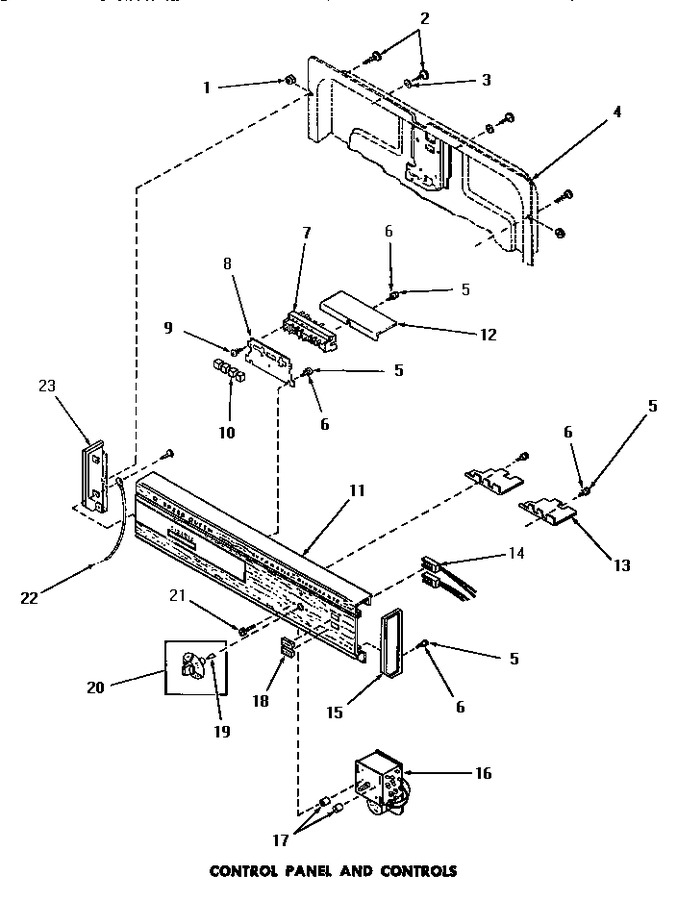

03 - Control Panel & Controls


04 - Detergent Dispenser


05 - Frame


06 - Inlet Valve And Water Inlet


07 - Loading Door & Access Panel


08 - M110063 Door Latch


09 - M110204 Door Latch


10 - Motor, Relay & Pump Body


11 - Pump Impeller & Diffuser Kit


12 - Racks


13 - Spray Arms & Hoses


14 - Tub, Gasket, Float Switch & Heating Elem


15 - Wires & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110134		Grommet		Appelez-nous	-
2	65022		Screw,phillips Head				$ 83.47
3	21147		Washer,11/64idx1/16odx		Appelez-nous	-
4	Y00000000		See Note Door Panel, Inner		Appelez-nous	-
5	Sub. To D510147P		Screw,8b-18 X 1/2 Rd H   (Replaces: 51778)		Appelez-nous	-
6	Y20278		Lockwasher		Appelez-nous	-
7	M110138		Selector Switch		Appelez-nous	-
8	M110129		Mounting Bracket		Appelez-nous	-
9	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
10	M110126		Button,push Xreplace		Appelez-nous	-
11	M110001		Control Panel		Appelez-nous	-
12	M110128		Switch Guard		Appelez-nous	-
13	M110127		Timer Guard		Appelez-nous	-
14	M110137		Indicator Light		Appelez-nous	-
15	M110123		End Cap, Right		Appelez-nous	-
16	M110125		Timer Xreplace		Appelez-nous	-
17	M110136		Spacer		Appelez-nous	-
18	M110133		Lens		Appelez-nous	-
19	M110202		Clip Xreplace		Appelez-nous	-
20	M110121		Knob,timer Xreplace		Appelez-nous	-
21	M110146		Screw And Lockwasher		Appelez-nous	-
22	Y00000000		See Note Ground Wire		Appelez-nous	-
23	M110122		End Cap, Left		Appelez-nous	-
	NOTE:		Tub Inc: (2)20376 Nuts; (4) 81108 O-rings; (2)81120 Screws; (2)90690 Washers; (2)91163 Screws; M110015 Gskt; M110016 Gskt; M110045 Gskt; (2)m110059 Gskt Clips		Appelez-nous	-
