01 - 270p3 Door Latch Kit


02 - Accessory Kits


03 - Control Panel & Controls


04 - Detergent Dispenser


05 - Frame


06 - Inlet Valve And Water Inlet


07 - Loading Door & Access Panel


08 - M110063 Door Latch


09 - M110204 Door Latch


10 - Motor, Relay & Pump Body


11 - Pump Impeller & Diffuser Kit


12 - Racks


13 - Spray Arms & Hoses


14 - Tub, Gasket, Float Switch & Heating Elem


15 - Wires & Terminals

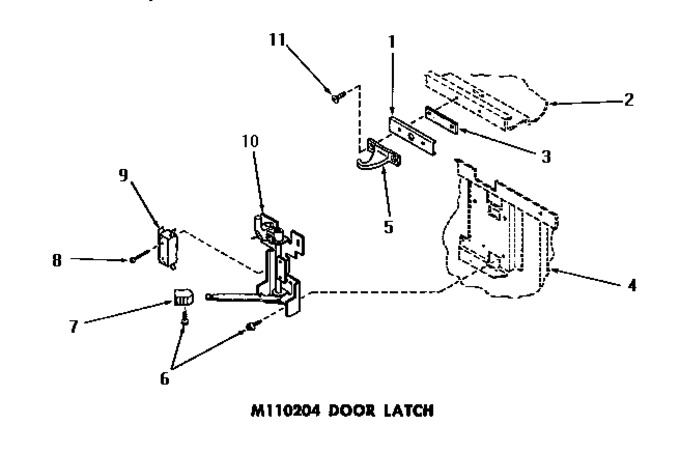

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110243		Shim		Appelez-nous	-
2	Y00000000		See Note Tub		Appelez-nous	-
3	M110061		Shim Xreplace		Appelez-nous	-
4	Y00000000		See Note Door Panel, Inner		Appelez-nous	-
5	M110203		Latch Strike		Appelez-nous	-
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	M110206		Knob Xreplace		Appelez-nous	-
8	10398		Screw			Immediately	$ 33.34
9	M110205		Switch Xreplace		Appelez-nous	-
10	M110204		Latch,door Xreplace		Appelez-nous	-
11	91163		Phillips Head Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
