01 - 270p3 Door Latch Kit


02 - Accessory Kits


03 - Control Panel & Controls


04 - Detergent Dispenser


05 - Frame


06 - Inlet Valve And Water Inlet


07 - Loading Door & Access Panel


08 - M110063 Door Latch


09 - M110204 Door Latch


10 - Motor, Relay & Pump Body


11 - Pump Impeller & Diffuser Kit


12 - Racks


13 - Spray Arms & Hoses


14 - Tub, Gasket, Float Switch & Heating Elem


15 - Wires & Terminals

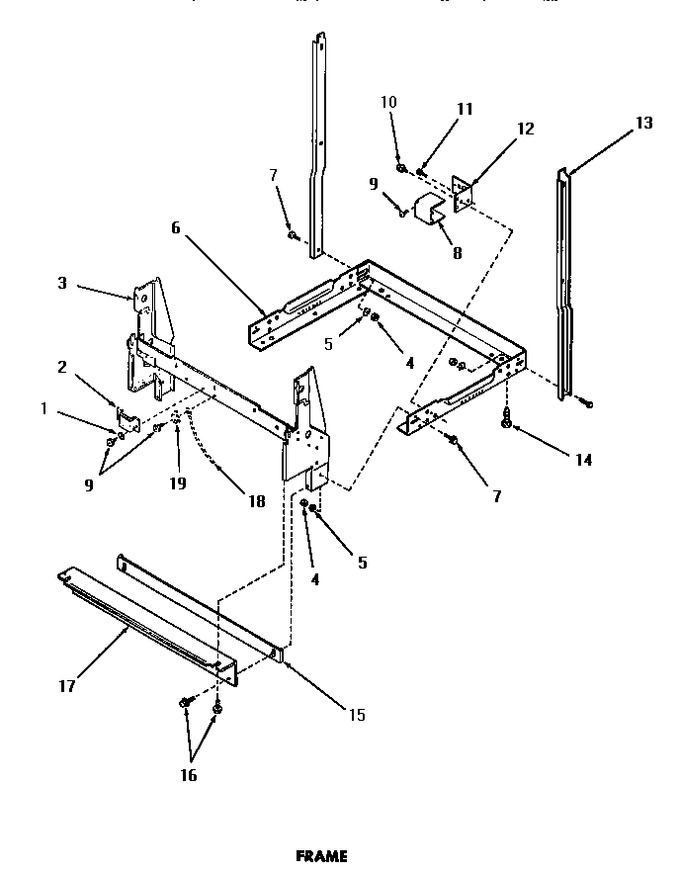

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y20278		Lockwasher		Appelez-nous	-
2	M110101		Clamp		Appelez-nous	-
3	M110100		Hinge Weldment		Appelez-nous	-
4	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
5	91093		Lockwasher		Appelez-nous	-
6	M110107		Base Frame		Appelez-nous	-
7	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
8	M110108		Junction Box Cover		Appelez-nous	-
9	Sub. To D510147P		Screw,8b-18 X 1/2 Rd H   (Replaces: 51778)		Appelez-nous	-
10	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
11	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
12	M110248		Bracket		Appelez-nous	-
13	M110106		Side Channel		Appelez-nous	-
14	M110105		Leg,leveling Xreplace		Appelez-nous	-
15	M110102		Plate,adjustable Toe Xreplace		Appelez-nous	-
16	21933		Hex Head Screw		Appelez-nous	-
17	M110103		Toe Plate		Appelez-nous	-
18	Y00000000		See Note Ground Wire		Appelez-nous	-
19	Y00000000		See Note Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
