Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 M110113 Rack,upper Xreplace Appelez-nous -
2 M110114 Rack,slide Xreplace Appelez-nous -
3 90690 Washer Appelez-nous -
4 M110056 Screw,shoulder Xreplace Appelez-nous -
5 M110115 Roller Xreplace Appelez-nous -
6 21080 Nut Appelez-nous -
7 M110117 Wheel & Cap Xreplace Appelez-nous -
8 M110229 Roller,tandem Xreplace Appelez-nous -
9 M110116 Rack,lower Xreplace Appelez-nous -
10 M110118 Basket,silverware Xreplace Appelez-nous -
NI M110227 Rack Touch-up Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

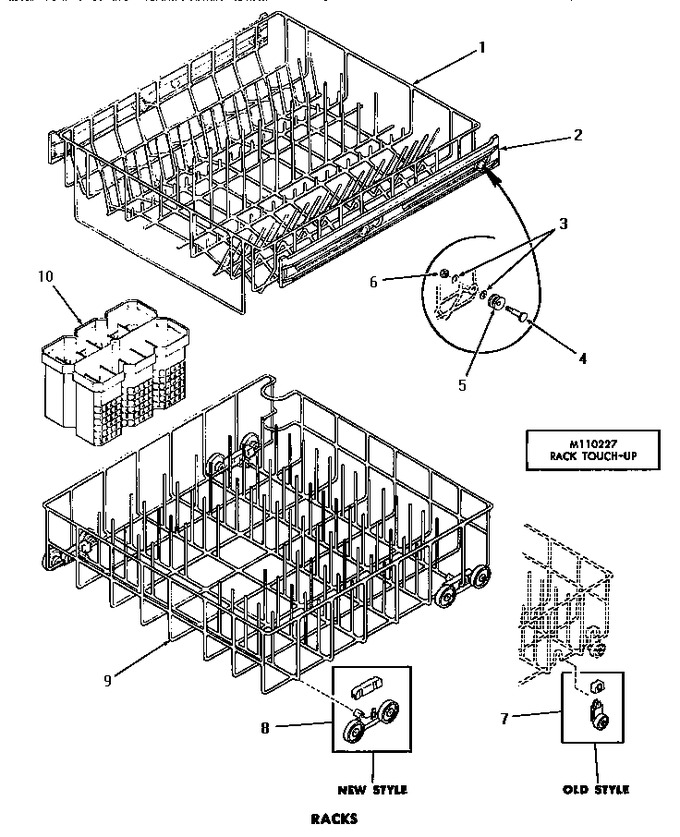

Diagram for DC5600
