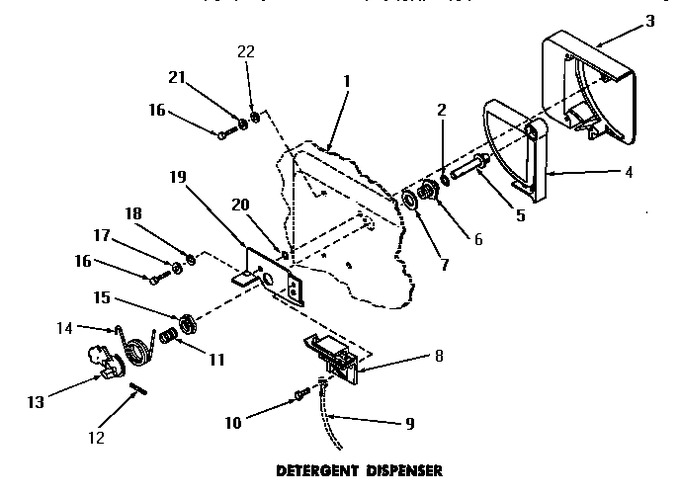

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y00000000 | See Note Door Panel, Inner |
|
- | |||||
| 2 | M110095 | O-ring |
|
- | |||||
| 3 | M110098 | Cup,detergent Xreplace |
|
- | |||||
| 4 | M110097 | Cup,detergent Xreplace |
|
- | |||||
| 5 | M110096 | Bag,parts Xreplace |
|
- | |||||
| 6 | M110094 | Bushing Xreplace |
|
- | |||||
| 7 | M110093 | Washer Xreplace |
|
- | |||||
| 8 | M110086 | Trigger,switch Xreplace |
|
- | |||||
| 9 | Y00000000 | See Note Ground Wire |
|
- | |||||
| 10 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 | ||||
| 11 | M110090 | Spring,cam Compressionxreplace |
|
- | |||||
| 12 | 51161 | Pin,roll 1/8 X 3/4 |
|
- | |||||
| 13 | M110087 | Cam Xreplace |
|
- | |||||
| 14 | M110089 | Spring,cam Xreplace |
|
- | |||||
| 15 | M110091 | Nut Xreplace |
|
- | |||||
| 16 | 03873 | Screw,10-24x5/8 Rd Hd |
|
- | |||||
| 17 | 90690 | Washer |
|
- | |||||
| 18 | M110145 | Washer,rubber Xreplace |
|
- | |||||
| 19 | M110092 | Bracket Xreplace |
|
- | |||||
| 20 | M110099 | Ring,o Xreplace |
|
- | |||||
| 21 | 90690 | Washer |
|
- | |||||
| 22 | M110145 | Washer,rubber Xreplace |
|
- |
