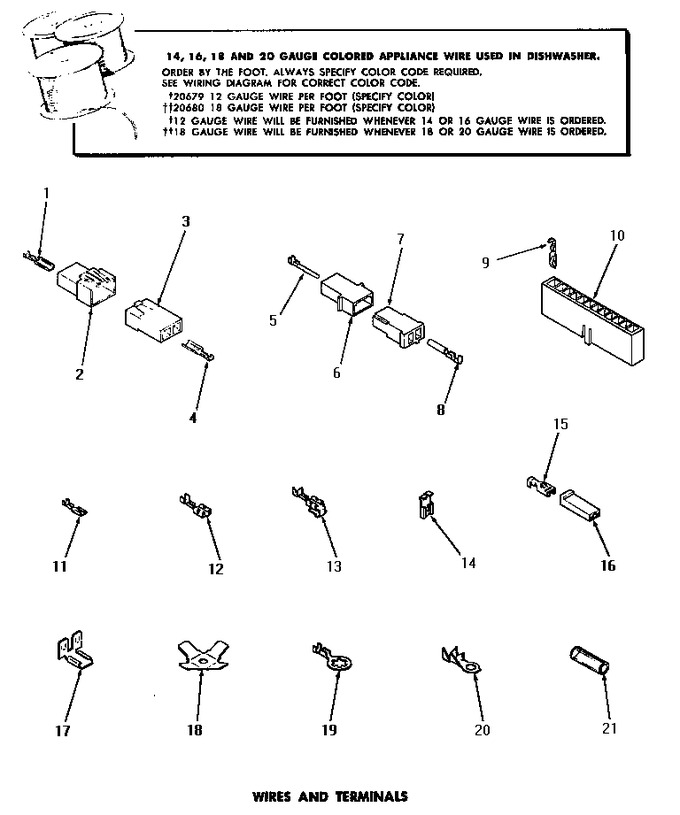

15 - Wires & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00151		Terminal		Appelez-nous	-
2	M110193		Terminal Block, 2 Circuit		Appelez-nous	-
2	M110195		Terminal Block, 4 Circuit		Appelez-nous	-
3	M110196		Terminal Block, 4 Circuit		Appelez-nous	-
3	M110194		Termianl Block, 2 Circuit		Appelez-nous	-
4	Y00151		Terminal		Appelez-nous	-
5	Y00152		Terminal		Appelez-nous	-
6	M110197		Terminal Block		Appelez-nous	-
7	M110198		Terminal Block		Appelez-nous	-
8	Y00153		Terminal		Appelez-nous	-
9	Y00154		Terminal		Appelez-nous	-
10	M110199		Terminal Block		Appelez-nous	-
11	00112		Terminal,spade-3/16 Fe		Appelez-nous	-
12	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
13	Y00114		Terminal,spade-1/4 Fem		Appelez-nous	-
14	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
15	Y00115		Terminal,spade-1/4 Fem		Appelez-nous	-
16	90789		Connector		Appelez-nous	-
17	51383Z		Tmnl Adapter		Appelez-nous	-
18	Y00150		Four-way Connector Terminal		Appelez-nous	-
19	Y00148		Eyelet Terminal		Appelez-nous	-
20	Y00149		Eyelet Terminal, 1/2`` Ring		Appelez-nous	-
21	Y21365		Insulator Sleeve		Appelez-nous	-
