SELECT A DIAGRAM

01 - 234p3 Stand Kit

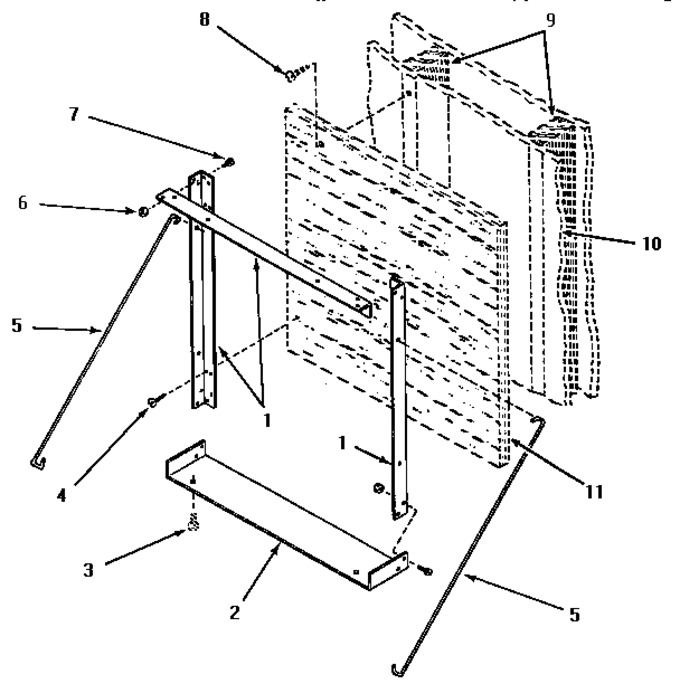

02 - 235p3 Wall Mtg Kit


03 - Control Panel And Cabinet


04 - Drum, Bearing Housing And Blower Fan


05 - Jacket, Drum Pulley, Belt And Rear Frame


06 - Motor, Idler And Capacitor


07 - Power Cord, Wire Harness, Wire & Term


08 - Timer, Start Switch And Loading Door


09 - To Vent Dryer Indoors


10 - To Vent Dryer To The Outdoors


11 - Use In Place Of Casters


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55160		Mounting Bracket		Appelez-nous	-
2	55159		Mounting Plate		Appelez-nous	-
3	Y00000000		See Note Caster Screw -- (see Page 3)		Appelez-nous	-
4	55146		Wood Screw		Appelez-nous	-
5	55158		Support Rod		Appelez-nous	-
6	55157		Nut		Appelez-nous	-
7	55156		Fillister Head Screw		Appelez-nous	-
8	Y00000000		See Note Wood Screw -- (no. 12 X 2-1/2 Inches, Not Included With Kit		Appelez-nous	-
9	Y00000000		See Note Wall Studs)		Appelez-nous	-
10	Y00000000		See Note Existing Wall		Appelez-nous	-
11	Y00000000		See Note Mounting Plate -- (3/4 Inch Plywood, Not Included With Kit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
