SELECT A DIAGRAM

01 - 234p3 Stand Kit


02 - 235p3 Wall Mtg Kit


03 - Control Panel And Cabinet


04 - Drum, Bearing Housing And Blower Fan


05 - Jacket, Drum Pulley, Belt And Rear Frame


06 - Motor, Idler And Capacitor


07 - Power Cord, Wire Harness, Wire & Term


08 - Timer, Start Switch And Loading Door


09 - To Vent Dryer Indoors


10 - To Vent Dryer To The Outdoors


11 - Use In Place Of Casters

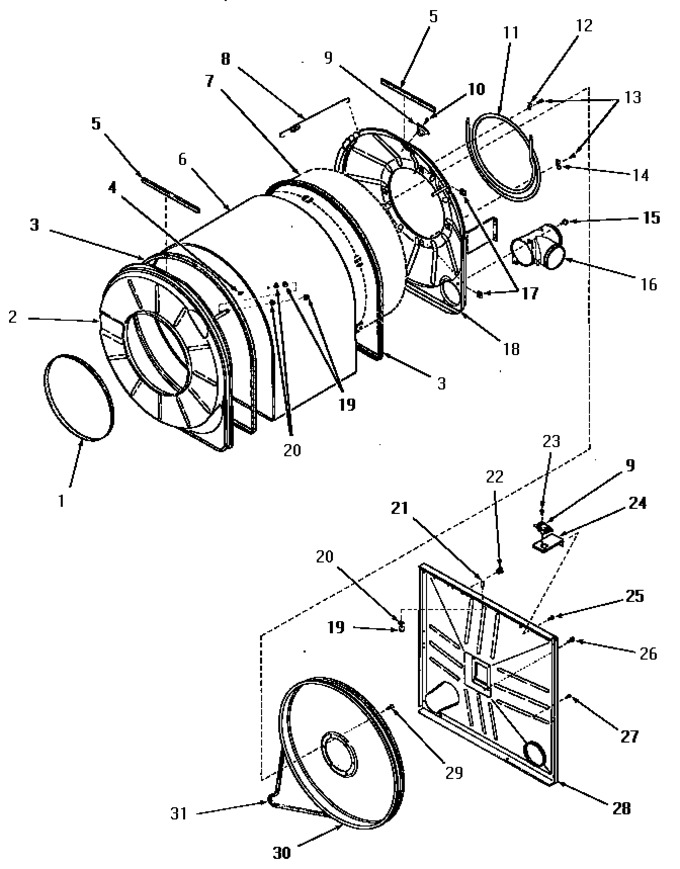

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55065		Seal,jacket-front		Appelez-nous	-
2	0055018		Panel, Manifold (gas)		Appelez-nous	-
3	55064		Seal,jacket		Appelez-nous	-
4	55081		Screw				$ 106.99
5	55105		Cushion		Appelez-nous	-
6	Y0055019		Panel, Manifold (gas)		Appelez-nous	-
7	Y00000000		See Note Drum Assembly -- (see Page 2)		Appelez-nous	-
8	Y0055043		Clock, 50hz		Appelez-nous	-
9	55099		Thermostat		Appelez-nous	-
10	Y02424		Round Head Screw		Appelez-nous	-
11	55097		Element,heater Xreplace		Appelez-nous	-
12	Y0055045		Outer Door Glass		Appelez-nous	-
13	22145		Screw,6z-20x 3/8 Ss Rd		Appelez-nous	-
14	WP74011243		Switch, Infinite   (Replaces: 0055044)				$ 115.88
15	55121		Phillips Head Screw		Appelez-nous	-
16	55051		Exhaust Housing		Appelez-nous	-
17	55126		Speed Nut		Appelez-nous	-
18	Y0055013		Panel, Manifold (gas 24)		Appelez-nous	-
19	55085		Nut				$ 266.07
20	Y20278		Lockwasher		Appelez-nous	-
21	Y0055033		Knob, Top Burner		Appelez-nous	-
22	55127		Plug		Appelez-nous	-
23	53006		Round Head Screw		Appelez-nous	-
24	0055024		Glass, Backguard		Appelez-nous	-
25	VC1RF		Phillips Head Screw   (Replaces: 55087)			Immediately	$ 35.95
26	55079		Fillister Head Screw		Appelez-nous	-
27	55124		Phillips Head Screw		Appelez-nous	-
28	55011		Rear Frame		Appelez-nous	-
29	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
30	0055017		Panel, Manifold (gas)		Appelez-nous	-
31	55059		Belt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
