SELECT A DIAGRAM

01 - 234p3 Stand Kit


02 - 235p3 Wall Mtg Kit


03 - Control Panel And Cabinet


04 - Drum, Bearing Housing And Blower Fan


05 - Jacket, Drum Pulley, Belt And Rear Frame


06 - Motor, Idler And Capacitor


07 - Power Cord, Wire Harness, Wire & Term


08 - Timer, Start Switch And Loading Door


09 - To Vent Dryer Indoors


10 - To Vent Dryer To The Outdoors


11 - Use In Place Of Casters

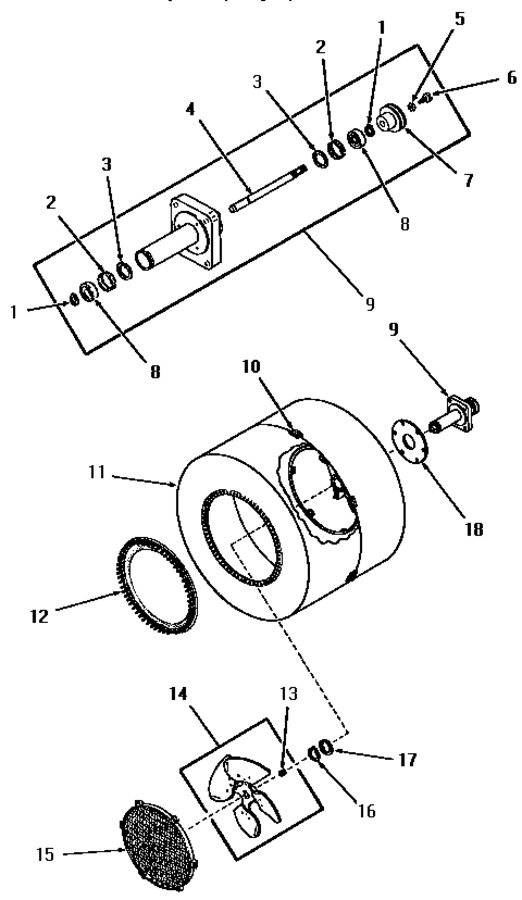

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y55073		Retainer Ring		Appelez-nous	-
2	Y55082		Sleeve		Appelez-nous	-
3	Y0055080		Kit, Motor Mounting		Appelez-nous	-
4	Y0055028		Knob, Top Burner		Appelez-nous	-
5	03815		Lockwasher,no.10 Ext Shk				$ 3.34
6	55165		Phillips Head Screw		Appelez-nous	-
7	0055035		Clock		Appelez-nous	-
8	55077		Ball Bearing				$ 94.06
9	Y0055031		Glass, Control Panel		Appelez-nous	-
10	Y0055042		Timer		Appelez-nous	-
11	0055040		Clock		Appelez-nous	-
12	55063		Seal,door-inner		Appelez-nous	-
13	55074		Sleeve				$ 276.70
14	Y0055021		Glass, Backguard		Appelez-nous	-
15	55050		Grille		Appelez-nous	-
16	Y55072		Retainer Ring		Appelez-nous	-
17	55117		Spacer Washer		Appelez-nous	-
18	0055023		Glass, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
