SELECT A DIAGRAM

01 - 234p3 Stand Kit


02 - 235p3 Wall Mtg Kit


03 - Control Panel And Cabinet


04 - Drum, Bearing Housing And Blower Fan


05 - Jacket, Drum Pulley, Belt And Rear Frame


06 - Motor, Idler And Capacitor

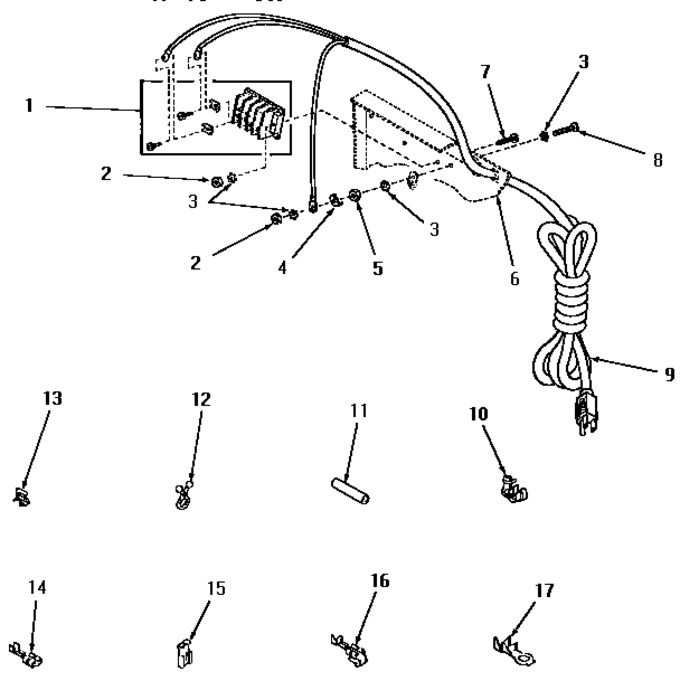

07 - Power Cord, Wire Harness, Wire & Term


08 - Timer, Start Switch And Loading Door


09 - To Vent Dryer Indoors


10 - To Vent Dryer To The Outdoors


11 - Use In Place Of Casters


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55102		Terminal Block		Appelez-nous	-
2	55085		Nut				$ 266.07
3	Y20278		Lockwasher		Appelez-nous	-
4	55090		Cup Washer		Appelez-nous	-
5	Y0055034		Knob, Thermostat		Appelez-nous	-
6	Y00000000		See Note Rear Frame -- (see Page 3)		Appelez-nous	-
7	55081		Screw				$ 106.99
8	Y55083		Ground Screw		Appelez-nous	-
9	D-440		Power Cord   (Replaces: 55100)				$ 693.44
10	10382		Relief,strain Xreplace			Immediately	$ 15.28
11	Y21365		Insulator Sleeve		Appelez-nous	-
12	10400		Wire Tie			Immediately	$ 29.26
13	Y0055110		Panel, Graphics		Appelez-nous	-
14	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
15	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
16	00132		Terminal,piggyback-1/4		Appelez-nous	-
17	00131		Eyelet Terminal		Appelez-nous	-
NI	55155		Wire, 16 Gauge Colored Applian		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
