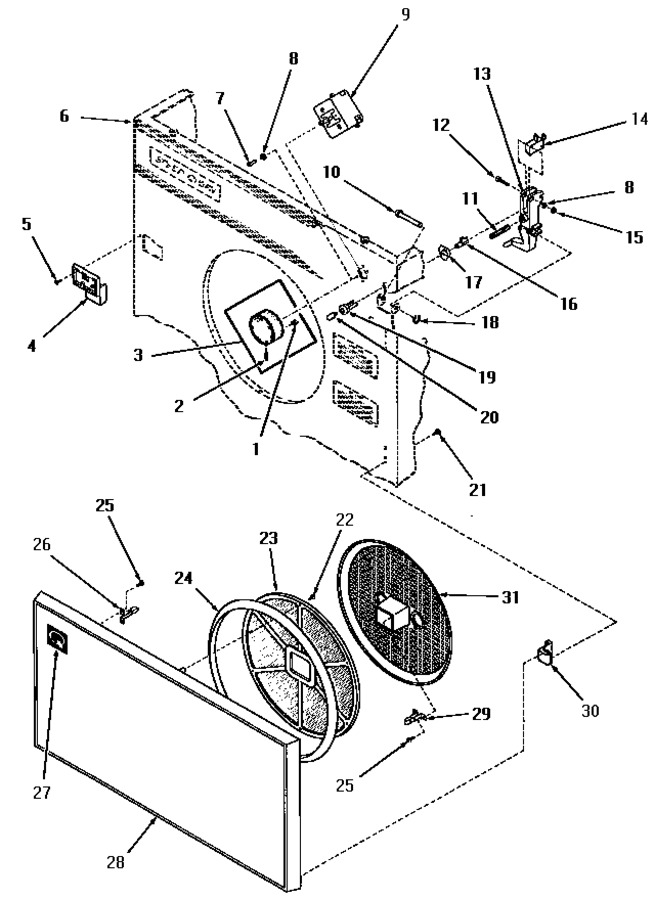

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55089		Nut		Appelez-nous	-
2	55088		Setscrew		Appelez-nous	-
3	55016		Knob,timer		Appelez-nous	-
4	55049		Striker Catch		Appelez-nous	-
5	55123		Phillips Head Screw		Appelez-nous	-
6	Y00000000		See Note Cabinet -- (see Page 1)		Appelez-nous	-
7	55091		Screw		Appelez-nous	-
8	55150		Lockwasher		Appelez-nous	-
9	55101		Timer Xreplace		Appelez-nous	-
10	55076		Pivot Pin				$ 446.86
11	0055047		Screw		Appelez-nous	-
12	55095		Screw		Appelez-nous	-
13	55162		Switch Lever		Appelez-nous	-
13	55055		Switch Lever		Appelez-nous	-
14	55096		Push-to-start Switch		Appelez-nous	-
15	Y0055111		Panel, Graphics		Appelez-nous	-
16	55058		Cam,switch		Appelez-nous	-
17	55094		Push Nut		Appelez-nous	-
18	Y55092		Retainer Ring		Appelez-nous	-
19	55056		Collar Xreplace		Appelez-nous	-
20	55057		Button,push		Appelez-nous	-
21	53006		Round Head Screw		Appelez-nous	-
22	55122		Phillips Head Screw		Appelez-nous	-
23	55052		Screen,lint		Appelez-nous	-
24	55061		Seal,door-outer		Appelez-nous	-
25	55121		Phillips Head Screw		Appelez-nous	-
26	55038		Strike,door			Immediately	$ 7.42
27	Y04827		Monogram Sticker		Appelez-nous	-
28	55014C		Door Assembly, Coppertone		Appelez-nous	-
28	55014H		Door Assembly, Harvest Gold		Appelez-nous	-
28	55014A		Door Assembly, Avocado		Appelez-nous	-
28	55014W		Door Assembly, White		Appelez-nous	-
29	Y0055041		Timer, Digital		Appelez-nous	-
30	55066		Door Hinge				$ 2.16
31	55053		Housing,lint Screen		Appelez-nous	-
