SELECT A DIAGRAM

01 - 234p3 Stand Kit


02 - 235p3 Wall Mtg Kit


03 - Control Panel And Cabinet


04 - Drum, Bearing Housing And Blower Fan


05 - Jacket, Drum Pulley, Belt And Rear Frame

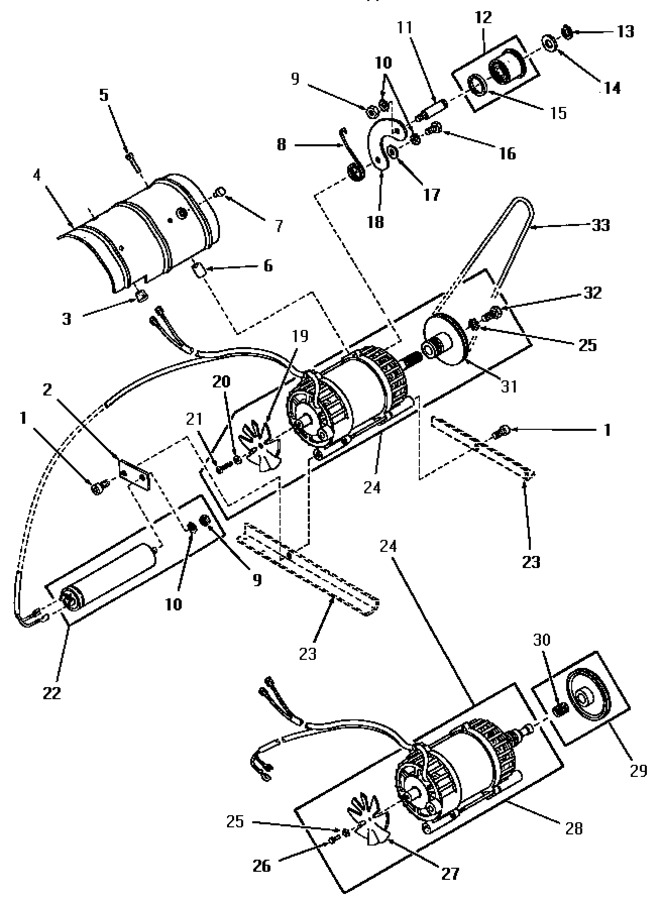

06 - Motor, Idler And Capacitor


07 - Power Cord, Wire Harness, Wire & Term


08 - Timer, Start Switch And Loading Door


09 - To Vent Dryer Indoors


10 - To Vent Dryer To The Outdoors


11 - Use In Place Of Casters


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0055078		Kit, Motor & Plate		Appelez-nous	-
2	0055026		Glass, Backguard		Appelez-nous	-
3	55152		Insulator		Appelez-nous	-
4	Y0055109		Panel, Graphics		Appelez-nous	-
5	55151		Fillister Head Screw		Appelez-nous	-
6	55118		Spacer		Appelez-nous	-
7	53445		Bumper		Appelez-nous	-
8	0055039		Glass, Backguard		Appelez-nous	-
9	Y55086		Nut		Appelez-nous	-
10	02834		Lockwasher,5/16 Ext Sh		Appelez-nous	-
11	Y0055030		Knob, Therm., Upper Oven		Appelez-nous	-
12	Y0055046		07565600		Appelez-nous	-
13	Y55071		Retainer Ring		Appelez-nous	-
14	Y55093		Spacer Washer		Appelez-nous	-
15	Y55070		Felt Washer		Appelez-nous	-
16	Y55084		Cap Screw		Appelez-nous	-
17	Y0055037		Clock		Appelez-nous	-
18	Y0055027		Knob, Top Burner		Appelez-nous	-
19	55169		Sub Ra43515		Appelez-nous	-
20	55150		Lockwasher		Appelez-nous	-
21	55170		Phillips Head Screw		Appelez-nous	-
22	55104		Capacitor Assembly		Appelez-nous	-
23	Y00000000		See Note Mounting Bracket -- (see Page 1)		Appelez-nous	-
24	55166		Motor, 115 Volt, 60 Hertz, A.c		Appelez-nous	-
25	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
26	Y0055108		Button, Push, Start		Appelez-nous	-
27	55107		Motor Fan		Appelez-nous	-
28	55103		Motor		Appelez-nous	-
29	Y0055036		Clock		Appelez-nous	-
30	Y55075		Sleeve		Appelez-nous	-
31	55167		Pulley Xreplace		Appelez-nous	-
32	55168		Cap Screw		Appelez-nous	-
33	55060		Belt		Appelez-nous	-
